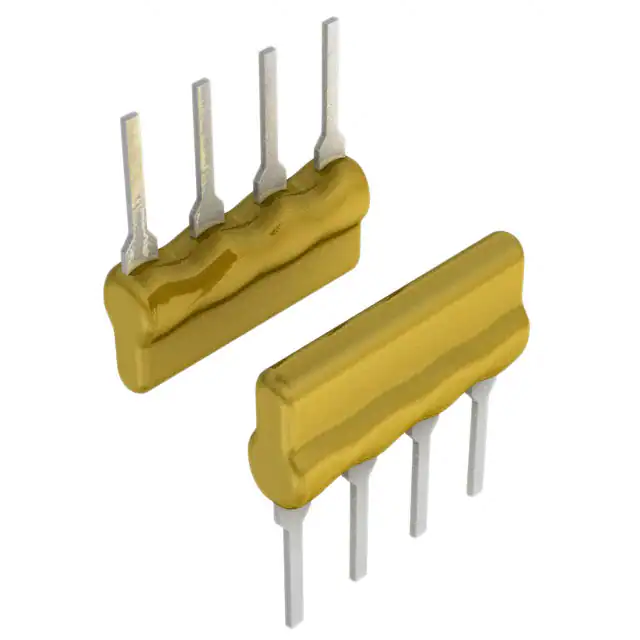

| Part Number | 4604X-102-122LF | 4604X-102-222LF | 4604X-102-123LF | 4604X-102-152LF | 4604X-102-182LF | 4604X-102-822LF | 4604X-101-122LF | 4604X-102-102LF | 4604X-102-121LF |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Bussed | Isolated | Isolated |
| Resistance (Ohms) | 1.2k | 2.2k | 12k | 1.5k | 1.8k | 8.2k | 1.2k | 1K | 120 |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 2 | 2 |
| Resistor Matching Ratio | - | - | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - | - | - | - | - |
| Number of Pins | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Power Per Element | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW | 200mW | 300mW | 300mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP |
| Supplier Device Package | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP |
| Size / Dimension | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
