Please send RFQ , we will respond immediately.

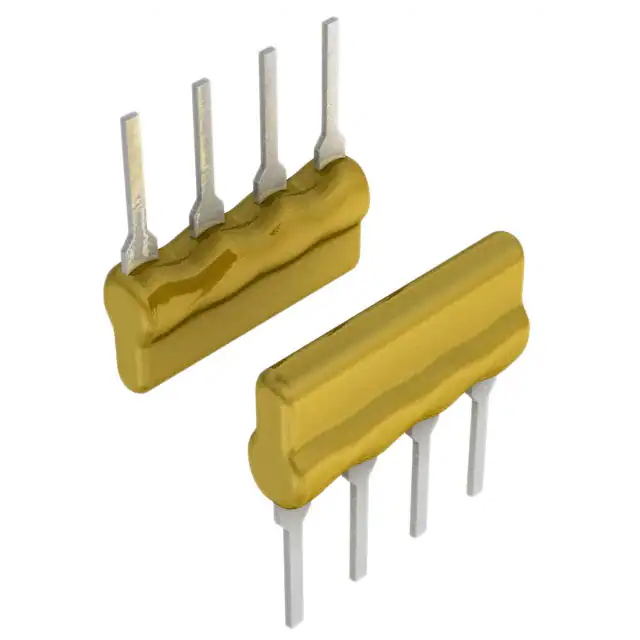

| Part Number | 4604X-101-101LF | 4604X-101-104LF | 4604X-102-101LF | 4604X-101-103LF | 4604X-101-102LF | 4604X-101-105LF | 4604X-101-151LF | 4604X-101-121LF | 4604X-101-181LF | 4604X-101-100LF |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Isolated | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 100 | 100k | 100 | 10k | 1K | 1M | 150 | 120 | 180 | 10 |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±1Ohm |
| Number of Resistors | 3 | 3 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Resistor Matching Ratio | - | - | - | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - | - | - | - | 50ppm/°C | 50ppm/°C |
| Number of Pins | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Power Per Element | 200mW | 200mW | 300mW | 200mW | 200mW | 200mW | 200mW | 200mW | 200mW | 200mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±250ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP |
| Supplier Device Package | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP |
| Size / Dimension | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
