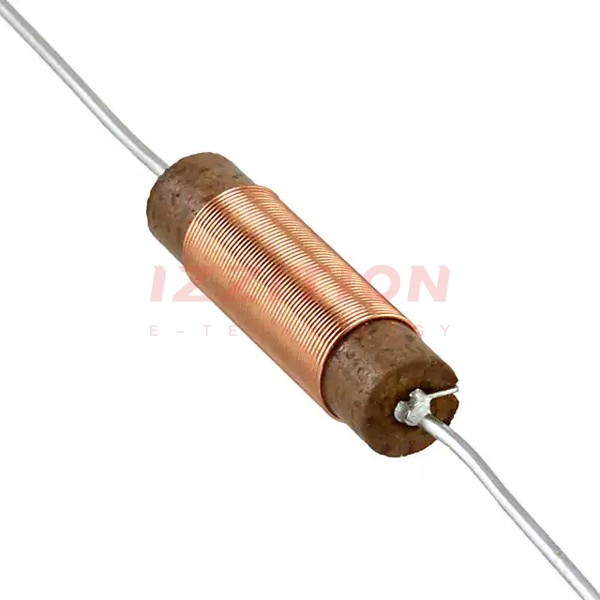

| Part Number | 4602-RC | 4612-RC | 4609-RC | 4608-RC | 4604-RC | 4606-RC | 4622-RC | 4632-RC | 4652-RC | 4642-RC |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Wirewound |
| Material - Core | Phenolic | Phenolic | Phenolic | Phenolic | Phenolic | Phenolic | Iron | Iron | Phenolic | Phenolic |
| Inductance | 1 µH | 10 µH | 5.5 µH | 3.9 µH | 1.5 µH | 2.4 µH | 10 µH | 100 µH | 1 mH | 100 µH |
| Tolerance | ±20% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 2 A | 500 mA | 850 mA | 1 A | 1.8 A | 1.5 A | 1.5 A | 400 mA | 160 mA | 160 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 50mOhm Max | 1.5Ohm Max | 670mOhm Max | 450mOhm Max | 93mOhm Max | 190mOhm Max | 110mOhm Max | 3Ohm Max | 19Ohm Max | 5.4Ohm Max |
| Q @ Freq | 60 @ 7.96MHz | 36 @ 2.52MHz | 57 @ 7.96MHz | 60 @ 7.96MHz | 58 @ 7.96MHz | 56 @ 7.96MHz | 69 @ 2.52MHz | 107 @ 790kHz | 59 @ 252kHz | 49 @ 790kHz |
| Frequency - Self Resonant | 190MHz | 61MHz | 80MHz | 93MHz | 149MHz | 120MHz | 40MHz | 12MHz | 3.7MHz | 11MHz |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz | 2.52 MHz | 7.96 MHz | 7.96 MHz | 7.96 MHz | 7.96 MHz | 2.52 MHz | 790 kHz | 252 kHz | 790 kHz |
| Features | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.560" Dia x 0.875" L (14.22mm x 22.22mm) | 0.410" Dia x 0.875" L (10.41mm x 22.22mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
