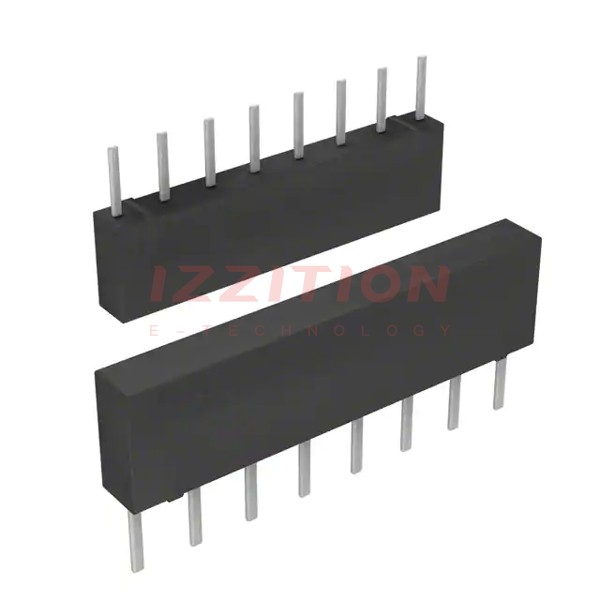

| Part Number | 4308M-102-330LF | 4308M-102-331LF | 4308M-102-333LF |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 33 | 330 | 33k |
| Tolerance | ±1Ohm | ±2% | ±2% |
| Number of Resistors | 4 | 4 | 4 |
| Resistor Matching Ratio | - | - | - |
| Resistor-Ratio-Drift | 50ppm/°C | 50ppm/°C | 50ppm/°C |
| Number of Pins | 8 | 8 | 8 |
| Power Per Element | 400mW | 400mW | 400mW |
| Temperature Coefficient | ±250ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 8-SIP | 8-SIP | 8-SIP |
| Supplier Device Package | 8-SIP | 8-SIP | 8-SIP |
| Size / Dimension | 0.784" L x 0.085" W (19.91mm x 2.16mm) | 0.784" L x 0.085" W (19.91mm x 2.16mm) | 0.784" L x 0.085" W (19.91mm x 2.16mm) |
| Height - Seated (Max) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
