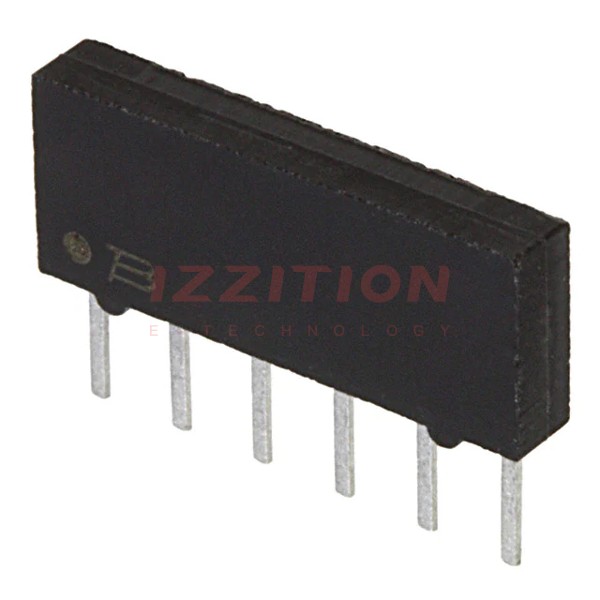

| Part Number | 4306M-102-122 | 4306M-102-182 | 4306M-102-222 | 4306M-102-102 | 4306M-102-121 |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 1.2k | 1.8k | 2.2k | 1K | 120 |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 3 | 3 | 3 | 3 | 3 |
| Resistor Matching Ratio | - | - | - | - | - |
| Resistor-Ratio-Drift | 50ppm/°C | 50ppm/°C | 50ppm/°C | 50ppm/°C | 50ppm/°C |
| Number of Pins | 6 | 6 | 6 | 6 | 6 |
| Power Per Element | 400mW | 400mW | 400mW | 400mW | 400mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP |
| Supplier Device Package | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP |
| Size / Dimension | 0.584" L x 0.085" W (14.83mm x 2.16mm) | 0.584" L x 0.085" W (14.83mm x 2.16mm) | 0.584" L x 0.085" W (14.83mm x 2.16mm) | 0.584" L x 0.085" W (14.83mm x 2.16mm) | 0.584" L x 0.085" W (14.83mm x 2.16mm) |
| Height - Seated (Max) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
