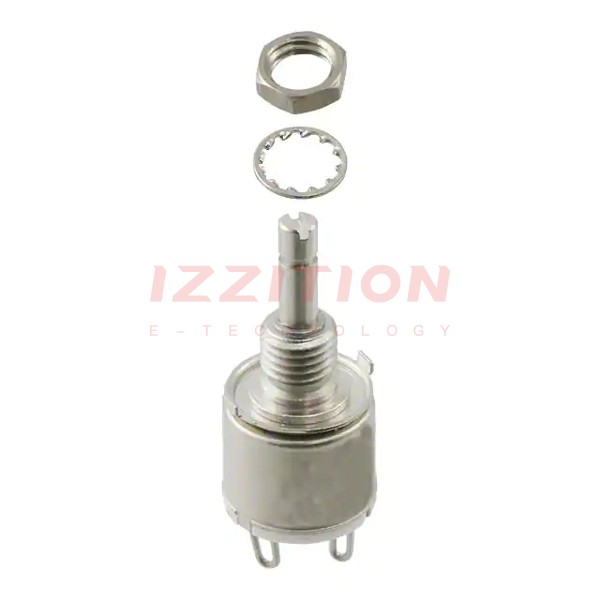

| Part Number | 3862C-206-105AL | 3862C-206-103AL | 3862C-206-104AL |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Resistance (Ohms) | 1M | 10k | 100k |
| Tolerance | ±10% | ±10% | ±10% |
| Power (Watts) | 1W | 1W | 1W |
| Built in Switch | None | None | None |
| Number of Turns | 1 | 1 | 1 |
| Features | - | - | - |
| Taper | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment |
| Temperature Coefficient | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C |
| Rotation | 295° | 295° | 295° |
| Resistive Material | Cermet | Cermet | Cermet |
| Termination Style | PC Pins | PC Pins | PC Pins |
| Actuator Type | Slotted | Slotted | Slotted |
| Actuator Length | 0.625" (15.88mm) | 0.625" (15.88mm) | 0.625" (15.88mm) |
| Actuator Diameter | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Bushing Thread | 1/4-32 | 1/4-32 | 1/4-32 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
