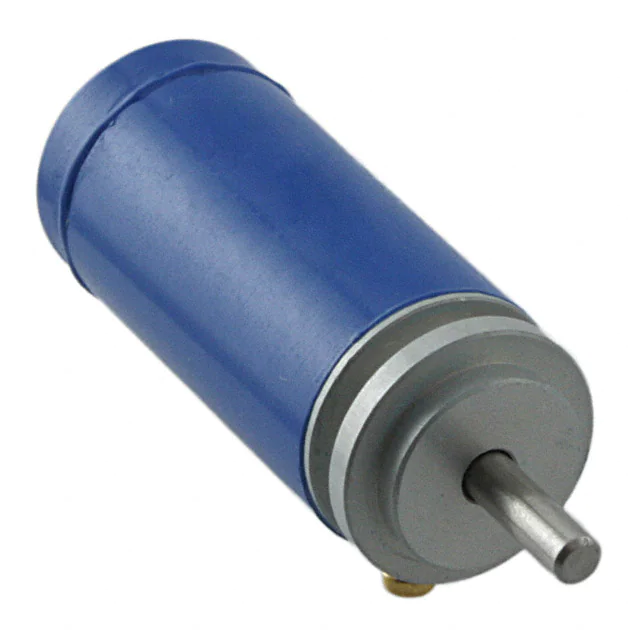

| Part Number | 3751H-1-103L | 3751H1-1-103L | 3751H-1-102L |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Resistance (Ohms) | 10k | 10k | 1K |
| Tolerance | ±10% | ±10% | ±10% |
| Power (Watts) | 1W | 1W | 1W |
| Built in Switch | None | None | None |
| Number of Turns | 10 | 10 | 10 |
| Features | - | - | - |
| Taper | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Rotation | 3600° | 3600° | 3600° |
| Resistive Material | Hybritron® | Hybritron® | Hybritron® |
| Termination Style | Solder Turret | Solder Turret | Solder Turret |
| Actuator Type | Round | Round | Round |
| Actuator Length | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) |
| Actuator Diameter | 0.093" (2.36mm) | 0.093" (2.36mm) | 0.093" (2.36mm) |
| Bushing Thread | - | - | - |
| Mounting Type | Servo Mount | Servo Mount | Servo Mount |
