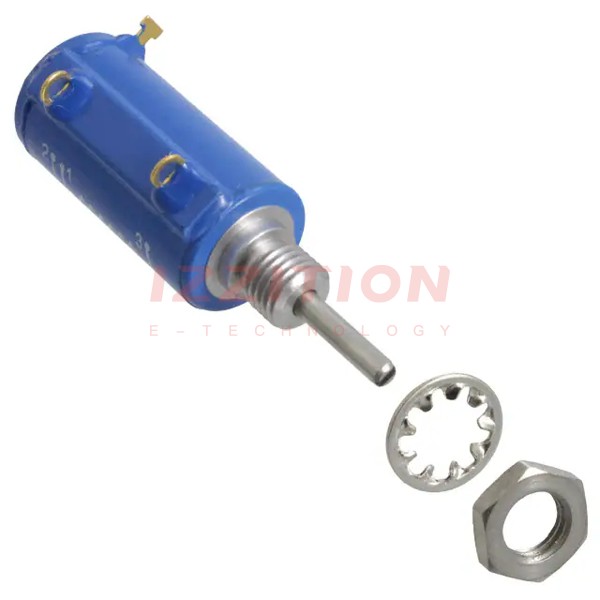

| Part Number | 3700S-1-103L | 3750S-1-103L | 3700S-1-104L | 3700S-1-203L |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance (Ohms) | 10k | 10k | 100k | 20k |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 1W | 1W |
| Built in Switch | None | None | None | None |
| Number of Turns | 10 | 10 | 10 | 10 |
| Features | - | - | - | - |
| Taper | Linear | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined | User Defined |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Rotation | 3600° | 3600° | 3600° | 3600° |
| Resistive Material | Wirewound | Wirewound | Wirewound | Wirewound |
| Termination Style | Solder Lug | Solder Turret | Solder Lug | Solder Lug |
| Actuator Type | Slotted | Round | Slotted | Slotted |
| Actuator Length | 0.687" (17.46mm) | 0.375" (9.53mm) | 0.687" (17.46mm) | 0.687" (17.46mm) |
| Actuator Diameter | 0.093" (2.36mm) | 0.093" (2.36mm) | 0.093" (2.36mm) | 0.093" (2.36mm) |
| Bushing Thread | 1/4-32 | - | 1/4-32 | 1/4-32 |
| Mounting Type | Panel Mount | Servo Mount | Panel Mount | Panel Mount |
