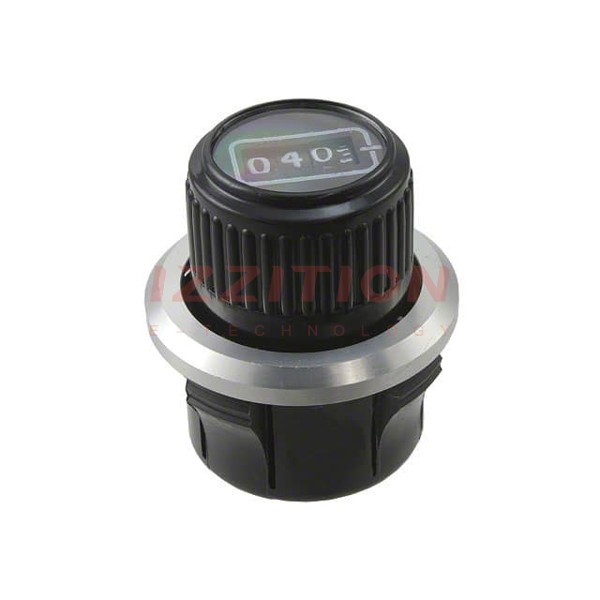

| Part Number | 3610S-1-103 | 3610S-2-103 | 3610S-1-104 | 3610S-1-102 |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance (Ohms) | 10k | 10k | 100k | 1K |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1.5W | 1.5W | 1.5W | 1.5W |
| Built in Switch | None | None | None | None |
| Number of Turns | 10 | 10 | 10 | 10 |
| Features | - | - | - | - |
| Taper | Linear | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined | User Defined |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Rotation | 3600° | 3600° | 3600° | 3600° |
| Resistive Material | Wirewound | Wirewound | Wirewound | Wirewound |
| Termination Style | Solder Hook | Solder Hook | Solder Hook | Solder Hook |
| Actuator Type | Knob | Knob | Knob | Knob |
| Actuator Length | 0.740" (18.80mm) | 0.695" (17.65mm) | 0.740" (18.80mm) | 0.740" (18.80mm) |
| Actuator Diameter | 0.875" (22.23mm) | 0.875" (22.23mm) | 0.875" (22.23mm) | 0.875" (22.23mm) |
| Bushing Thread | - | 3/8-32 | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
