3590S-2-103
  • Share:

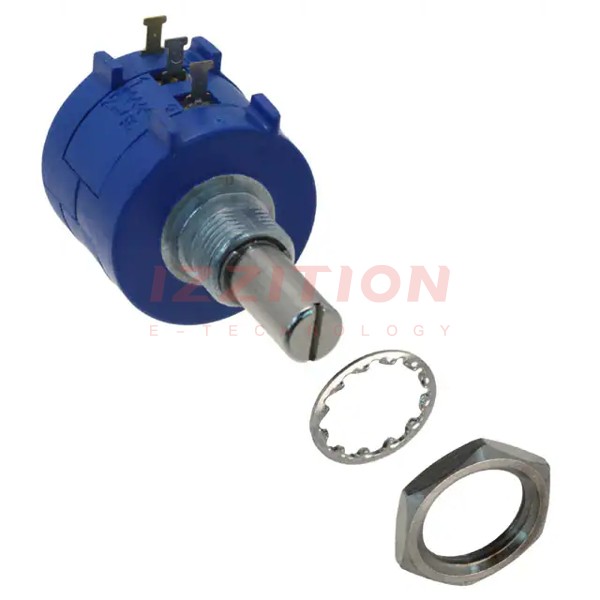

Bourns Inc. 3590S-2-103

Manufacturer No:
3590S-2-103
Manufacturer:
Bourns Inc.
Package:
Bulk
Datasheet:
3590S-2-103 Datasheet
ECAD Model:
-
Description:
POT 10K OHM 2W WIREWOUND LINEAR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance (Ohms):10k
Tolerance:±5%
Power (Watts):2W
Built in Switch:None
Number of Turns:10
Features:-
Taper:Linear
Number of Gangs:1
Adjustment Type:User Defined
Temperature Coefficient:±50ppm/°C
Rotation:3600°
Resistive Material:Wirewound
Termination Style:Solder Lug
Actuator Type:Slotted
Actuator Length:0.812" (20.63mm)
Actuator Diameter:0.2497" (6.34mm)
Bushing Thread:3/8-32
Mounting Type:Panel Mount
0 Remaining View Similar

In Stock

-
508

Please send RFQ , we will respond immediately.

Similar Products

Part Number 3590S-2-103 3590S-2-103L   3590S-2-104   3590S-2-203   3590S-2-503   3590S-1-103   3590S-2-102
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Obsolete Active Obsolete Obsolete Obsolete Obsolete Obsolete
Resistance (Ohms) 10k 10k 100k 20k 50k 10k 1K
Tolerance ±5% ±5% ±5% ±5% ±5% ±5% ±5%
Power (Watts) 2W 2W 2W 2W 2W 2W 2W
Built in Switch None None None None None None None
Number of Turns 10 10 10 10 10 10 10
Features - - - - - - -
Taper Linear Linear Linear Linear Linear Linear Linear
Number of Gangs 1 1 1 1 1 1 1
Adjustment Type User Defined User Defined User Defined User Defined User Defined User Defined User Defined
Temperature Coefficient ±50ppm/°C ±50ppm/°C ±50ppm/°C ±50ppm/°C ±50ppm/°C ±50ppm/°C ±50ppm/°C
Rotation 3600° 3600° 3600° 3600° 3600° 3600° 3600°
Resistive Material Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound
Termination Style Solder Lug Solder Lug Solder Lug Solder Lug Solder Lug Solder Lug Solder Lug
Actuator Type Slotted Slotted Slotted Slotted Slotted Slotted Slotted
Actuator Length 0.812" (20.63mm) 0.812" (20.63mm) 0.812" (20.63mm) 0.812" (20.63mm) 0.812" (20.63mm) 0.812" (20.63mm) 0.812" (20.63mm)
Actuator Diameter 0.2497" (6.34mm) 0.2497" (6.34mm) 0.2497" (6.34mm) 0.2497" (6.34mm) 0.2497" (6.34mm) 0.248" (6.30mm) 0.2497" (6.34mm)
Bushing Thread 3/8-32 3/8-32 3/8-32 3/8-32 3/8-32 3/8-32 3/8-32
Mounting Type Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount
