Please send RFQ , we will respond immediately.

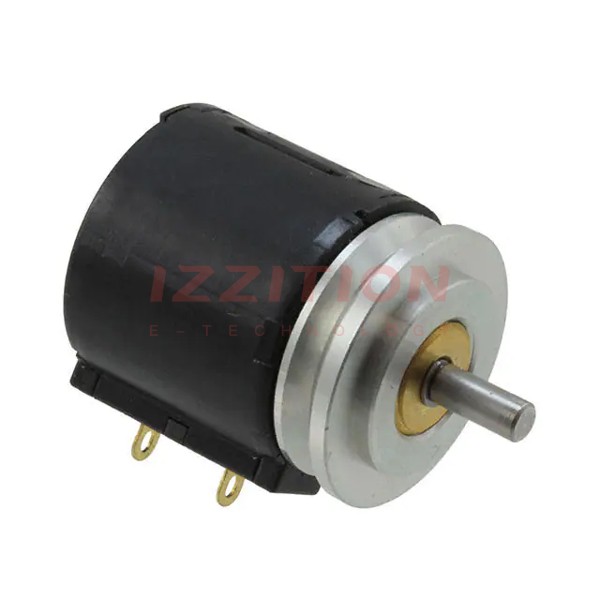

| Part Number | 3549H-1AE-502B | 3549H-1AG-502B | 3548H-1AE-502B | 3549H-1AA-502B | 3549H-1AB-502B | 3549H-1AC-502B | 3549H-1AE-102B |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance (Ohms) | 5k | 5k | 5k | 5k | 5k | 5k | 1K |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Power (Watts) | 2W | 2W | 1.5W | 2W | 2W | 2W | 2W |
| Built in Switch | None | None | None | None | None | None | None |
| Number of Turns | 10 | 10 | 5 | 10 | 10 | 10 | 10 |
| Features | - | - | - | - | - | - | - |
| Taper | Linear | Linear | Linear | Linear | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined | User Defined | User Defined | User Defined | User Defined |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Rotation | 3600° | 3600° | 1800° | 3600° | 3600° | 3600° | 3600° |
| Resistive Material | Hybritron® | Hybritron® | Hybritron® | Hybritron® | Hybritron® | Hybritron® | Hybritron® |
| Termination Style | Solder Lug | Solder Lug | Solder Lug | Solder Lug | Solder Lug | Solder Lug | Solder Lug |
| Actuator Type | Round | Slotted | Round | Slotted | Slotted | Slotted | Round |
| Actuator Length | 0.375" (9.53mm) | 0.813" (20.64mm) | 0.375" (9.53mm) | 0.813" (20.64mm) | 0.811" (20.60mm) | 0.813" (20.64mm) | 0.375" (9.53mm) |
| Actuator Diameter | 0.125" (3.18mm) | 0.250" (6.35mm) | 0.125" (3.18mm) | 0.250" (6.35mm) | 0.236" (6.00mm) | 0.250" (6.35mm) | 0.125" (3.18mm) |
| Bushing Thread | - | 3/8-32 | - | 3/8-32 | M9 x 0.75 | 3/8-32 | - |
| Mounting Type | Servo Mount | Panel Mount | Servo Mount | Panel Mount | Panel Mount | Panel Mount | Servo Mount |
