3549H-1AB-502B
  • Share:

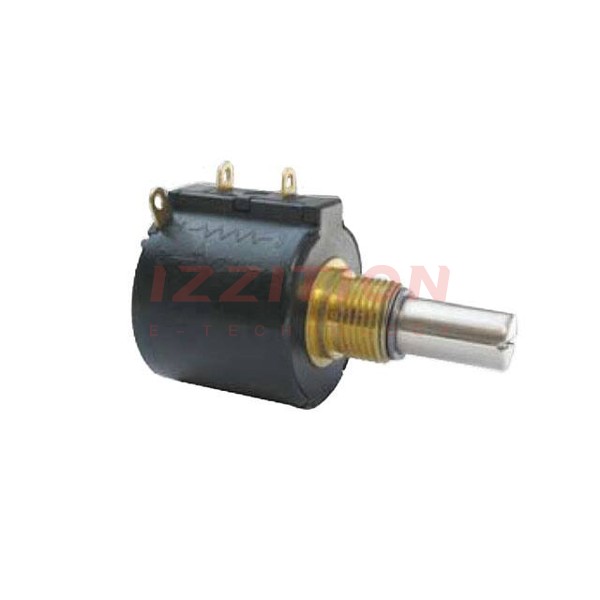

Bourns Inc. 3549H-1AB-502B

Manufacturer No:
3549H-1AB-502B
Manufacturer:
Bourns Inc.
Package:
Tray
Datasheet:
3549H-1AB-502B Datasheet
ECAD Model:
-
Description:
POT 5K OHM 2W HYBRITRON LINEAR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance (Ohms):5k
Tolerance:±10%
Power (Watts):2W
Built in Switch:None
Number of Turns:10
Features:-
Taper:Linear
Number of Gangs:1
Adjustment Type:User Defined
Temperature Coefficient:±100ppm/°C
Rotation:3600°
Resistive Material:Hybritron®
Termination Style:Solder Lug
Actuator Type:Slotted
Actuator Length:0.811" (20.60mm)
Actuator Diameter:0.236" (6.00mm)
Bushing Thread:M9 x 0.75
Mounting Type:Panel Mount
0 Remaining View Similar

In Stock

$34.41
20

Please send RFQ , we will respond immediately.

Similar Products

Part Number 3549H-1AB-502B 3549S-1AB-502B   3549H-1AC-502B   3549H-1AE-502B   3549H-1AG-502B   3548H-1AB-502B   3549H-1AA-502B
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active Active Active Active
Resistance (Ohms) 5k 5k 5k 5k 5k 5k 5k
Tolerance ±10% ±3% ±10% ±10% ±10% ±10% ±10%
Power (Watts) 2W 2W 2W 2W 2W 1.5W 2W
Built in Switch None None None None None None None
Number of Turns 10 10 10 10 10 5 10
Features - - - - - - -
Taper Linear Linear Linear Linear Linear Linear Linear
Number of Gangs 1 1 1 1 1 1 1
Adjustment Type User Defined User Defined User Defined User Defined User Defined User Defined User Defined
Temperature Coefficient ±100ppm/°C ±50ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C
Rotation 3600° 3600° 3600° 3600° 3600° 1800° 3600°
Resistive Material Hybritron® Wirewound Hybritron® Hybritron® Hybritron® Hybritron® Hybritron®
Termination Style Solder Lug Solder Lug Solder Lug Solder Lug Solder Lug Solder Lug Solder Lug
Actuator Type Slotted Slotted Slotted Round Slotted Slotted Slotted
Actuator Length 0.811" (20.60mm) 0.811" (20.60mm) 0.813" (20.64mm) 0.375" (9.53mm) 0.813" (20.64mm) 0.811" (20.60mm) 0.813" (20.64mm)
Actuator Diameter 0.236" (6.00mm) 0.236" (6.00mm) 0.250" (6.35mm) 0.125" (3.18mm) 0.250" (6.35mm) 0.236" (6.00mm) 0.250" (6.35mm)
Bushing Thread M9 x 0.75 M9 x 0.75 3/8-32 - 3/8-32 M9 x 0.75 3/8-32
Mounting Type Panel Mount Panel Mount Panel Mount Servo Mount Panel Mount Panel Mount Panel Mount
