Please send RFQ , we will respond immediately.

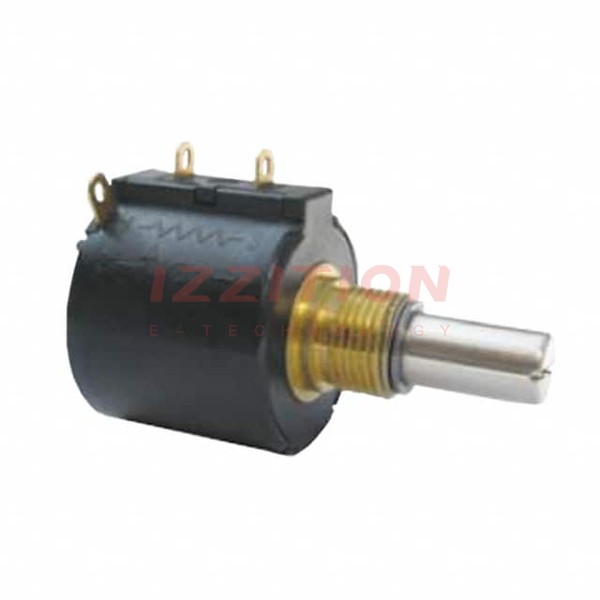

| Part Number | 3548H-1BA-103B | 3548S-1BA-103B | 3549H-1BA-103B | 3548H-1AA-103B |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance (Ohms) | 10k | 10k | 10k | 10k |
| Tolerance | ±10% | ±3% | ±10% | ±10% |
| Power (Watts) | 1.5W | 1.5W | 2W | 1.5W |
| Built in Switch | None | None | None | None |
| Number of Turns | 5 | 5 | 10 | 5 |
| Features | - | - | - | - |
| Taper | Linear | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined | User Defined |
| Temperature Coefficient | ±100ppm/°C | ±50ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Rotation | 1800° | 1800° | 3600° | 1800° |
| Resistive Material | Hybritron® | Wirewound | Hybritron® | Hybritron® |
| Termination Style | Solder Lug | Solder Lug | Solder Lug | Solder Lug |
| Actuator Type | Slotted | Slotted | Slotted | Slotted |
| Actuator Length | 0.813" (20.64mm) | 0.813" (20.64mm) | 0.813" (20.64mm) | 0.813" (20.64mm) |
| Actuator Diameter | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Bushing Thread | 3/8-32 | 3/8-32 | 3/8-32 | 3/8-32 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
