3548H-1AE-502B
  • Share:

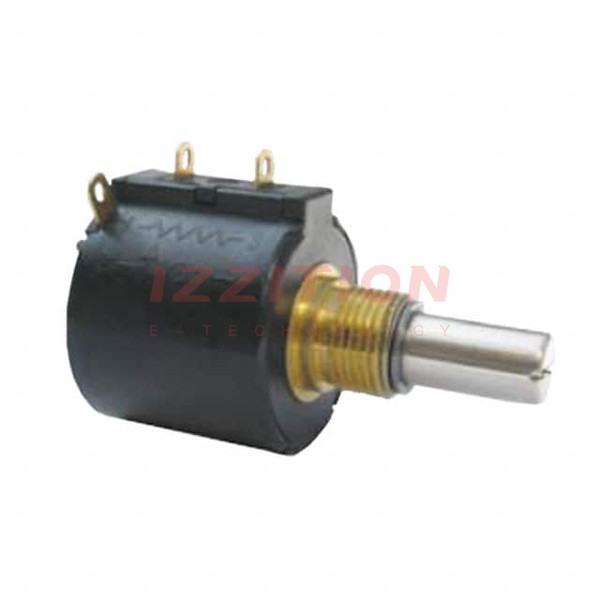

Bourns Inc. 3548H-1AE-502B

Manufacturer No:
3548H-1AE-502B
Manufacturer:
Bourns Inc.
Package:
Tray
Datasheet:
3548H-1AE-502B Datasheet
ECAD Model:
-
Description:
POT 5K OHM 1.5W HYBRITRON LINEAR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance (Ohms):5k
Tolerance:±10%
Power (Watts):1.5W
Built in Switch:None
Number of Turns:5
Features:-
Taper:Linear
Number of Gangs:1
Adjustment Type:User Defined
Temperature Coefficient:±100ppm/°C
Rotation:1800°
Resistive Material:Hybritron®
Termination Style:Solder Lug
Actuator Type:Round
Actuator Length:0.375" (9.53mm)
Actuator Diameter:0.125" (3.18mm)
Bushing Thread:-
Mounting Type:Servo Mount
0 Remaining View Similar

In Stock

$39.43
7

Please send RFQ , we will respond immediately.

Similar Products

Part Number 3548H-1AE-502B 3549H-1AE-502B   3548H-1AB-502B   3548H-1AC-502B
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active
Resistance (Ohms) 5k 5k 5k 5k
Tolerance ±10% ±10% ±10% ±10%
Power (Watts) 1.5W 2W 1.5W 1.5W
Built in Switch None None None None
Number of Turns 5 10 5 5
Features - - - -
Taper Linear Linear Linear Linear
Number of Gangs 1 1 1 1
Adjustment Type User Defined User Defined User Defined User Defined
Temperature Coefficient ±100ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C
Rotation 1800° 3600° 1800° 1800°
Resistive Material Hybritron® Hybritron® Hybritron® Hybritron®
Termination Style Solder Lug Solder Lug Solder Lug Solder Lug
Actuator Type Round Round Slotted Slotted
Actuator Length 0.375" (9.53mm) 0.375" (9.53mm) 0.811" (20.60mm) 0.813" (20.64mm)
Actuator Diameter 0.125" (3.18mm) 0.125" (3.18mm) 0.236" (6.00mm) 0.250" (6.35mm)
Bushing Thread - - M9 x 0.75 3/8-32
Mounting Type Servo Mount Servo Mount Panel Mount Panel Mount
