3548H-1AA-103A
  • Share:

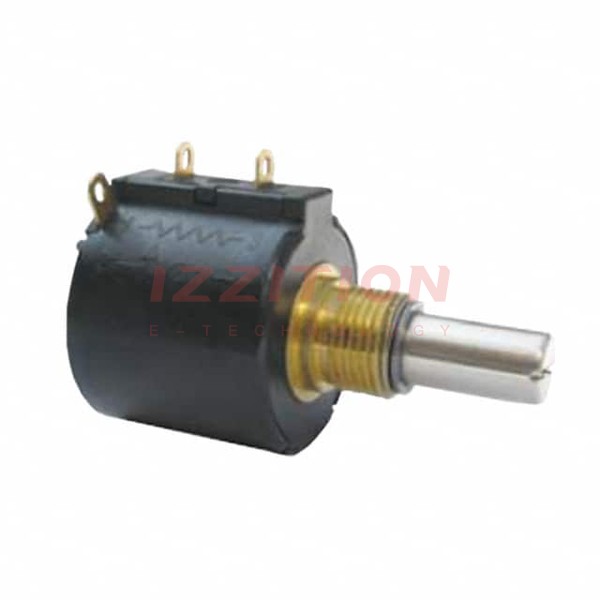

Bourns Inc. 3548H-1AA-103A

Manufacturer No:
3548H-1AA-103A
Manufacturer:
Bourns Inc.
Package:
Tray
Datasheet:
3548H-1AA-103A Datasheet
ECAD Model:
-
Description:
POT 10K OHM 1.5W HYBRITRON LIN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance (Ohms):10k
Tolerance:±10%
Power (Watts):1.5W
Built in Switch:None
Number of Turns:5
Features:-
Taper:Linear
Number of Gangs:1
Adjustment Type:User Defined
Temperature Coefficient:±100ppm/°C
Rotation:1800°
Resistive Material:Hybritron®
Termination Style:Solder Lug
Actuator Type:Slotted
Actuator Length:0.813" (20.64mm)
Actuator Diameter:0.250" (6.35mm)
Bushing Thread:3/8-32
Mounting Type:Panel Mount
0 Remaining View Similar

In Stock

$36.17
27

Please send RFQ , we will respond immediately.

Similar Products

Part Number 3548H-1AA-103A 3548S-1AA-103A   3548H-1AA-103B   3549H-1AA-103A   3548H-1AC-103A   3548H-1AA-102A
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active Active Active
Resistance (Ohms) 10k 10k 10k 10k 10k 1K
Tolerance ±10% ±3% ±10% ±10% ±10% ±10%
Power (Watts) 1.5W 1.5W 1.5W 2W 1.5W 1.5W
Built in Switch None None None None None None
Number of Turns 5 5 5 10 5 5
Features - - - - - -
Taper Linear Linear Linear Linear Linear Linear
Number of Gangs 1 1 1 1 1 1
Adjustment Type User Defined User Defined User Defined User Defined User Defined User Defined
Temperature Coefficient ±100ppm/°C ±50ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C
Rotation 1800° 1800° 1800° 3600° 1800° 1800°
Resistive Material Hybritron® Wirewound Hybritron® Hybritron® Hybritron® Hybritron®
Termination Style Solder Lug Solder Lug Solder Lug Solder Lug Solder Lug Solder Lug
Actuator Type Slotted Slotted Slotted Slotted Slotted Slotted
Actuator Length 0.813" (20.64mm) 0.813" (20.64mm) 0.813" (20.64mm) 0.813" (20.64mm) 0.813" (20.64mm) 0.813" (20.64mm)
Actuator Diameter 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm)
Bushing Thread 3/8-32 3/8-32 3/8-32 3/8-32 3/8-32 3/8-32
Mounting Type Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount
