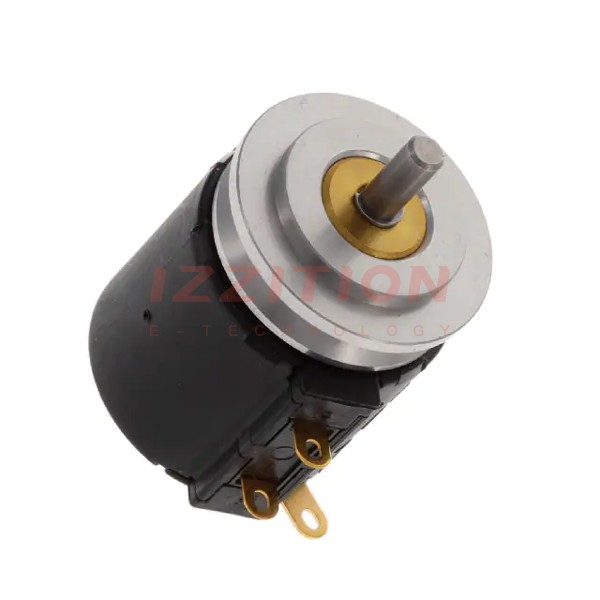

| Part Number | 3547S-1AE-103A | 3547S-1AG-103A | 3547S-1AA-103A |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Resistance (Ohms) | 10k | 10k | 10k |
| Tolerance | ±3% | ±3% | ±3% |
| Power (Watts) | 1W | 1W | 1W |
| Built in Switch | None | None | None |
| Number of Turns | 3 | 3 | 3 |
| Features | - | - | - |
| Taper | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Rotation | 1080° | 1080° | 1080° |
| Resistive Material | Wirewound | Wirewound | Wirewound |
| Termination Style | Solder Lug | Solder Lug | Solder Lug |
| Actuator Type | Round | Slotted | Slotted |
| Actuator Length | 0.375" (9.53mm) | 0.813" (20.64mm) | 0.813" (20.64mm) |
| Actuator Diameter | 0.125" (3.18mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Bushing Thread | - | 3/8-32 | 3/8-32 |
| Mounting Type | Servo Mount | Panel Mount | Panel Mount |
