3547S-1AC-503B
  • Share:

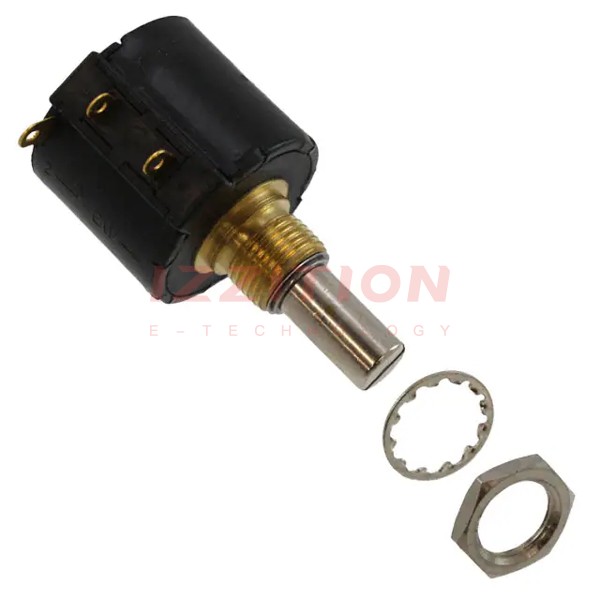

Bourns Inc. 3547S-1AC-503B

Manufacturer No:
3547S-1AC-503B
Manufacturer:
Bourns Inc.
Package:
Tray
Datasheet:
3547S-1AC-503B Datasheet
ECAD Model:
-
Description:
POT 50K OHM 1W WIREWOUND LINEAR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance (Ohms):50k
Tolerance:±3%
Power (Watts):1W
Built in Switch:None
Number of Turns:3
Features:-
Taper:Linear
Number of Gangs:1
Adjustment Type:User Defined
Temperature Coefficient:±50ppm/°C
Rotation:1080°
Resistive Material:Wirewound
Termination Style:Solder Lug
Actuator Type:Slotted
Actuator Length:0.813" (20.64mm)
Actuator Diameter:0.250" (6.35mm)
Bushing Thread:3/8-32
Mounting Type:Panel Mount
0 Remaining View Similar

In Stock

$29.75
15

Please send RFQ , we will respond immediately.

Similar Products

Part Number 3547S-1AC-503B 3547S-1AC-103B   3547S-1AC-203B
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active
Resistance (Ohms) 50k 10k 20k
Tolerance ±3% ±3% ±3%
Power (Watts) 1W 1W 1W
Built in Switch None None None
Number of Turns 3 3 3
Features - - -
Taper Linear Linear Linear
Number of Gangs 1 1 1
Adjustment Type User Defined User Defined User Defined
Temperature Coefficient ±50ppm/°C ±50ppm/°C ±50ppm/°C
Rotation 1080° 1080° 1080°
Resistive Material Wirewound Wirewound Wirewound
Termination Style Solder Lug Solder Lug Solder Lug
Actuator Type Slotted Slotted Slotted
Actuator Length 0.813" (20.64mm) 0.813" (20.64mm) 0.813" (20.64mm)
Actuator Diameter 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm)
Bushing Thread 3/8-32 3/8-32 3/8-32
Mounting Type Panel Mount Panel Mount Panel Mount
