3547S-1AA-502A
  • Share:

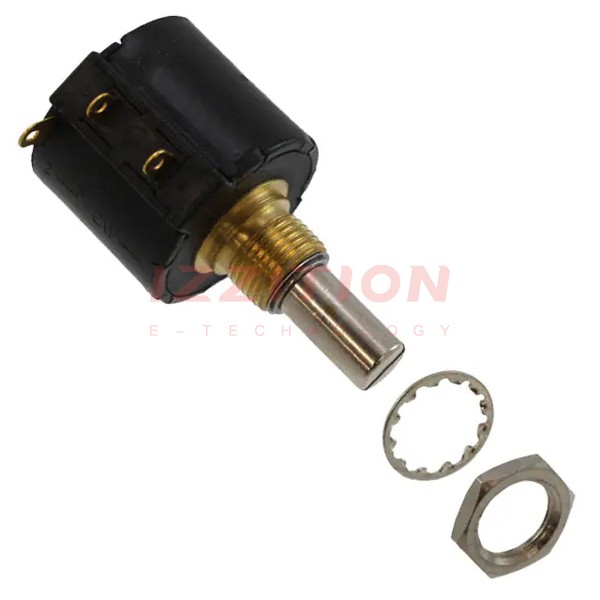

Bourns Inc. 3547S-1AA-502A

Manufacturer No:
3547S-1AA-502A
Manufacturer:
Bourns Inc.
Package:
Tray
Datasheet:
3547S-1AA-502A Datasheet
ECAD Model:
-
Description:
POT 5K OHM 1W WIREWOUND LINEAR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance (Ohms):5k
Tolerance:±3%
Power (Watts):1W
Built in Switch:None
Number of Turns:3
Features:-
Taper:Linear
Number of Gangs:1
Adjustment Type:User Defined
Temperature Coefficient:±50ppm/°C
Rotation:1080°
Resistive Material:Wirewound
Termination Style:Solder Lug
Actuator Type:Slotted
Actuator Length:0.813" (20.64mm)
Actuator Diameter:0.250" (6.35mm)
Bushing Thread:3/8-32
Mounting Type:Panel Mount
0 Remaining View Similar

In Stock

$29.91
26

Please send RFQ , we will respond immediately.

Similar Products

Part Number 3547S-1AA-502A 3548S-1AA-502A   3547S-1AB-502A   3547H-1AA-502A   3547S-1AA-102A   3547S-1AA-202A
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active Active Active
Resistance (Ohms) 5k 5k 5k 5k 1K 2K
Tolerance ±3% ±3% ±3% ±10% ±3% ±3%
Power (Watts) 1W 1.5W 1W 1W 1W 1W
Built in Switch None None None None None None
Number of Turns 3 5 3 3 3 3
Features - - - - - -
Taper Linear Linear Linear Linear Linear Linear
Number of Gangs 1 1 1 1 1 1
Adjustment Type User Defined User Defined User Defined User Defined User Defined User Defined
Temperature Coefficient ±50ppm/°C ±50ppm/°C ±50ppm/°C ±100ppm/°C ±50ppm/°C ±50ppm/°C
Rotation 1080° 1800° 1080° 1080° 1080° 1080°
Resistive Material Wirewound Wirewound Wirewound Hybritron® Wirewound Wirewound
Termination Style Solder Lug Solder Lug Solder Lug Solder Lug Solder Lug Solder Lug
Actuator Type Slotted Slotted Slotted Slotted Slotted Slotted
Actuator Length 0.813" (20.64mm) 0.813" (20.64mm) 0.811" (20.60mm) 0.813" (20.64mm) 0.813" (20.64mm) 0.813" (20.64mm)
Actuator Diameter 0.250" (6.35mm) 0.250" (6.35mm) 0.236" (6.00mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm)
Bushing Thread 3/8-32 3/8-32 M9 x 0.75 3/8-32 3/8-32 3/8-32
Mounting Type Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount
