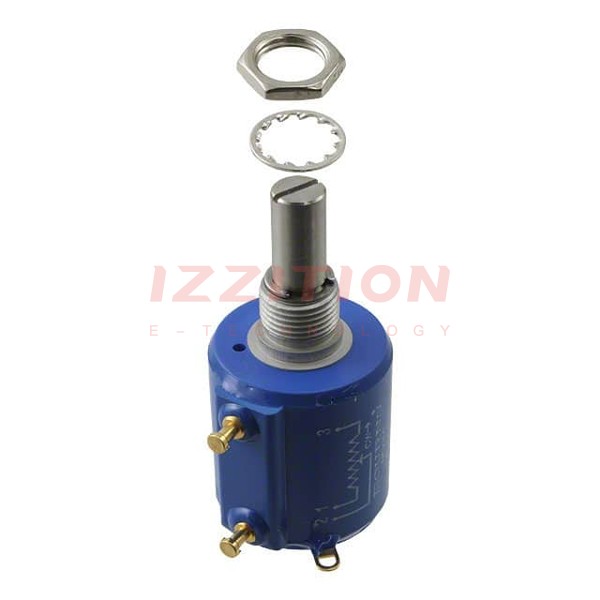

| Part Number | 3501H-1-502L | 3541H-1-502L | 3501H-1-503L | 3501H-1-102L |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance (Ohms) | 5k | 5k | 50k | 1K |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Power (Watts) | 2W | 2W | 2W | 2W |
| Built in Switch | None | None | None | None |
| Number of Turns | 10 | 10 | 10 | 10 |
| Features | - | - | - | - |
| Taper | Linear | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined | User Defined |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Rotation | 3600° | 3600° | 3600° | 3600° |
| Resistive Material | Hybritron® | Hybritron® | Hybritron® | Hybritron® |
| Termination Style | Solder Turret | Solder Lug | Solder Turret | Solder Turret |
| Actuator Type | Slotted | Slotted | Slotted | Slotted |
| Actuator Length | 0.813" (20.64mm) | 0.812" (20.63mm) | 0.813" (20.64mm) | 0.813" (20.64mm) |
| Actuator Diameter | 0.249" (6.32mm) | 0.2497" (6.34mm) | 0.249" (6.32mm) | 0.249" (6.32mm) |
| Bushing Thread | 3/8-32 | 3/8-32 | 3/8-32 | 3/8-32 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
