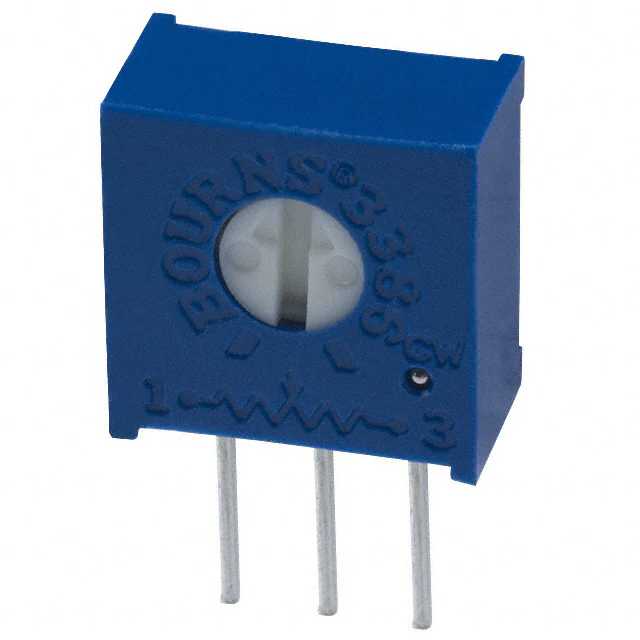

| Part Number | 3386W-1-203 | 3386W-1-203R | 3386W-1-253 | 3386W-1-503 | 3386W-1-204 | 3386W-1-205 | 3386X-1-203 | 3386W-1-203T | 3386V-1-203 | 3386W-1-103 | 3386W-1-200 | 3386W-1-201 | 3386W-1-202 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 20 kOhms | 20 kOhms | 25 kOhms | 50 kOhms | 200 kOhms | 2 MOhms | 20 kOhms | 20 kOhms | 20 kOhms | 10 kOhms | 20 Ohms | 200 Ohms | 2 kOhms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Finger Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) |
