Please send RFQ , we will respond immediately.

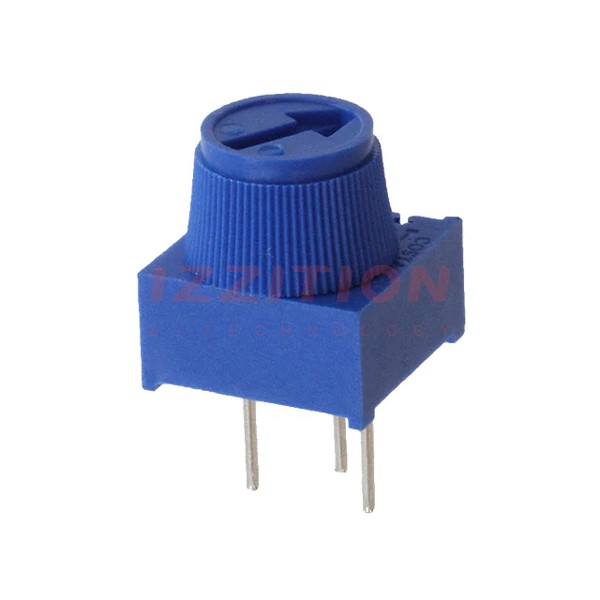

| Part Number | 3386P-1-301T | 3386P-1-501T | 3386P-1-101T | 3386P-1-201T |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance | 300 Ohms | 500 Ohms | 100 Ohms | 200 Ohms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Finger Adjustment | Top Finger Adjustment | Top Finger Adjustment | Top Finger Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) |
