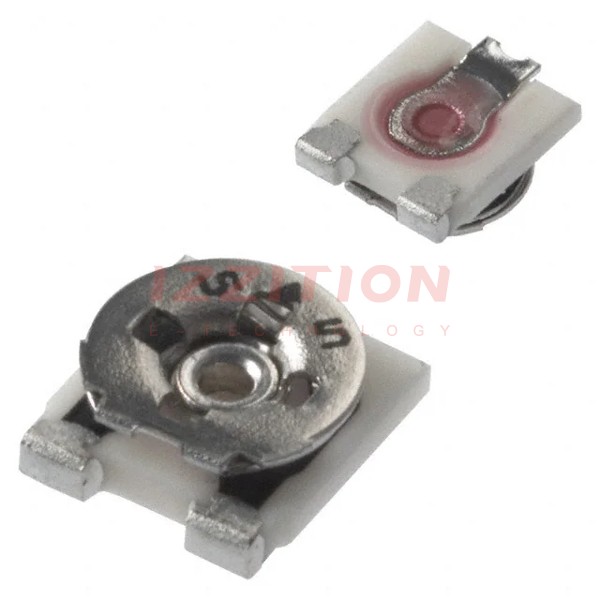

| Part Number | 3364W-1-203E | 3364X-1-203E | 3364W-1-503E | 3364W-1-204E | 3364W-1-203G | 3364A-1-203E | 3364B-1-203E | 3364W-1-103E | 3364W-1-201E | 3364W-1-202E |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 20 kOhms | 20 kOhms | 50 kOhms | 200 kOhms | 20 kOhms | 20 kOhms | 20 kOhms | 10 kOhms | 200 Ohms | 2 kOhms |
| Power (Watts) | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W |
| Tolerance | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) | Rectangular - 0.165" x 0.150" Face (4.20mm x 3.80mm) | Rectangular - 0.165" x 0.150" Face (4.20mm x 3.80mm) | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) |
