Please send RFQ , we will respond immediately.

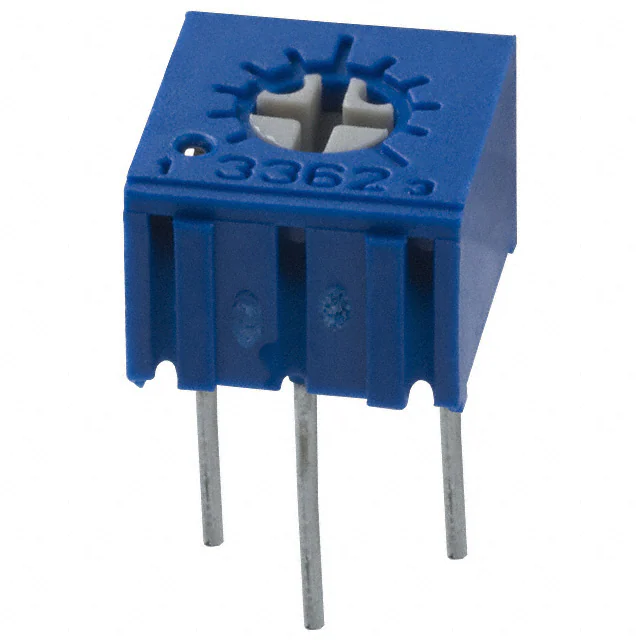

| Part Number | 3362R-1-500LF | 3362R-1-502LF | 3362R-1-501LF | 3362R-1-503LF | 3362R-1-504LF | 3362S-1-500LF | 3362P-1-500LF | 3362R-1-100LF | 3362R-1-200LF |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 50 Ohms | 5 kOhms | 500 Ohms | 50 kOhms | 500 kOhms | 50 Ohms | 50 Ohms | 10 Ohms | 20 Ohms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) |
