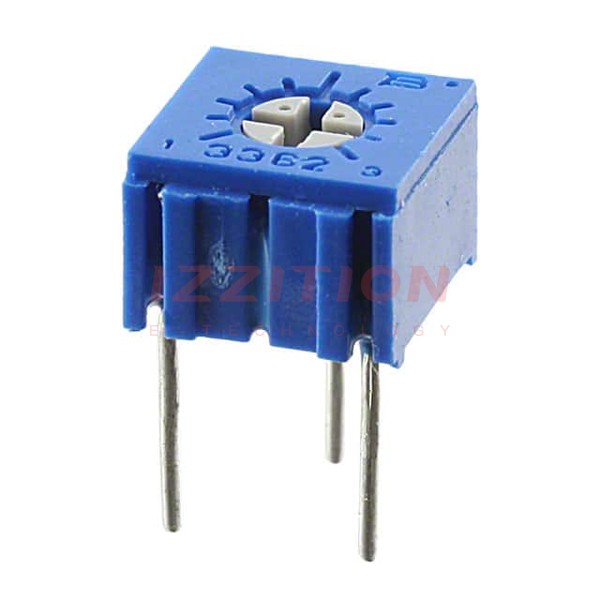

| Part Number | 3362F-1-103LF | 3362F-1-503LF | 3362F-1-104LF | 3362F-1-203LF | 3362M-1-103LF | 3362H-1-103LF | 3362F-1-105LF | 3362F-1-100LF | 3362F-1-101LF | 3362F-1-102LF |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 10 kOhms | 50 kOhms | 100 kOhms | 20 kOhms | 10 kOhms | 10 kOhms | 1 MOhms | 10 Ohms | 100 Ohms | 1 kOhms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) |
