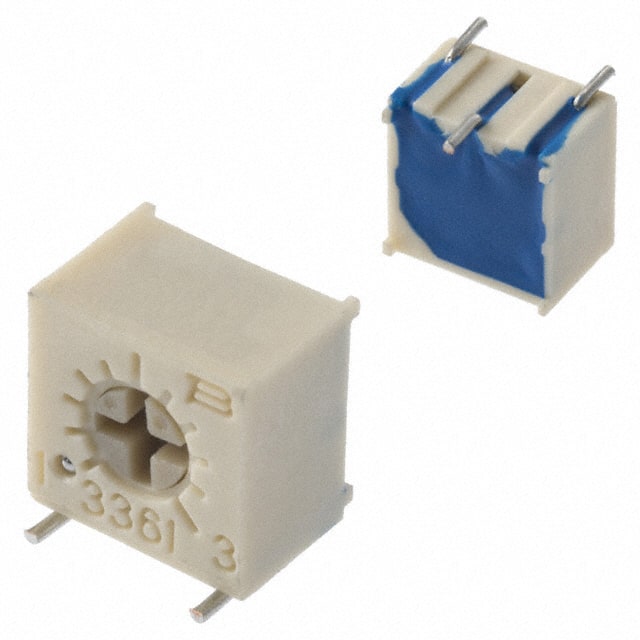

| Part Number | 3361S-1-102GLF | 3361S-1-103GLF | 3361S-1-502GLF | 3361S-1-202GLF | 3361S-1-104GLF | 3361S-1-105GLF | 3361P-1-102GLF | 3361S-1-100GLF | 3361S-1-101GLF |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 kOhms | 10 kOhms | 5 kOhms | 2 kOhms | 100 kOhms | 1 MOhms | 1 kOhms | 10 Ohms | 100 Ohms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | Gull Wing | Gull Wing | Gull Wing | Gull Wing | Gull Wing | Gull Wing | Gull Wing | Gull Wing | Gull Wing |
| Size / Dimension | Rectangular - 0.264" x 0.290" Face (6.71mm x 7.37mm) | Rectangular - 0.264" x 0.290" Face (6.71mm x 7.37mm) | Rectangular - 0.264" x 0.290" Face (6.71mm x 7.37mm) | Rectangular - 0.264" x 0.290" Face (6.71mm x 7.37mm) | Rectangular - 0.264" x 0.290" Face (6.71mm x 7.37mm) | Rectangular - 0.264" x 0.290" Face (6.71mm x 7.37mm) | Rectangular - 0.277" x 0.264" Face (7.04mm x 6.70mm) | Rectangular - 0.264" x 0.290" Face (6.71mm x 7.37mm) | Rectangular - 0.264" x 0.290" Face (6.71mm x 7.37mm) |
