Please send RFQ , we will respond immediately.

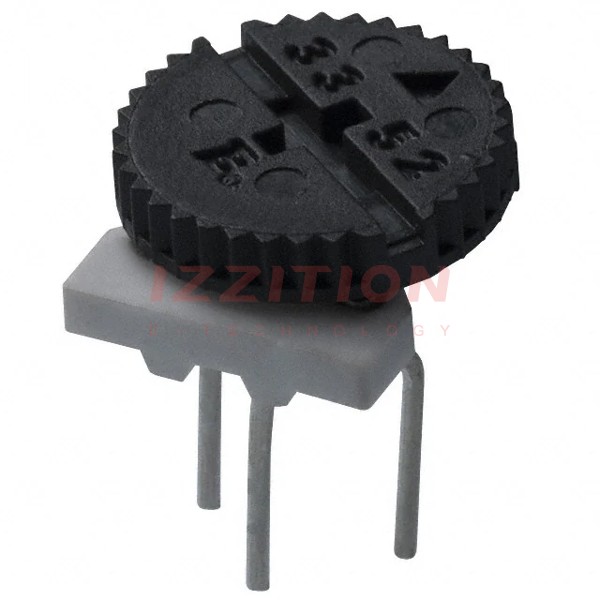

| Part Number | 3352P-1-500LF | 3352P-1-502LF | 3352P-1-505LF | 3352P-1-501LF | 3352P-1-503LF | 3352P-1-504LF | 3352T-1-500LF | 3352H-1-500LF | 3352K-1-500LF | 3352P-1-100LF | 3352P-1-200LF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 50 Ohms | 5 kOhms | 5 mOhms | 500 Ohms | 50 kOhms | 500 kOhms | 50 Ohms | 50 Ohms | 50 Ohms | 10 Ohms | 20 Ohms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Top Adjustment |
| Size / Dimension | Round - 0.350" Dia x 0.210" H (8.89mm x 5.33mm) | Round - 0.350" Dia x 0.210" H (8.89mm x 5.33mm) | Round - 0.350" Dia x 0.210" H (8.89mm x 5.33mm) | Round - 0.350" Dia x 0.210" H (8.89mm x 5.33mm) | Round - 0.350" Dia x 0.210" H (8.89mm x 5.33mm) | Round - 0.350" Dia x 0.210" H (8.89mm x 5.33mm) | Round - 0.350" Dia x 0.150" H (8.89mm x 3.81mm) | Round - 0.350" Dia x 0.350" H (8.89mm x 8.89mm) | Round - 0.350" Dia x 0.350" H (8.89mm x 8.89mm) | Round - 0.350" Dia x 0.210" H (8.89mm x 5.33mm) | Round - 0.350" Dia x 0.210" H (8.89mm x 5.33mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
