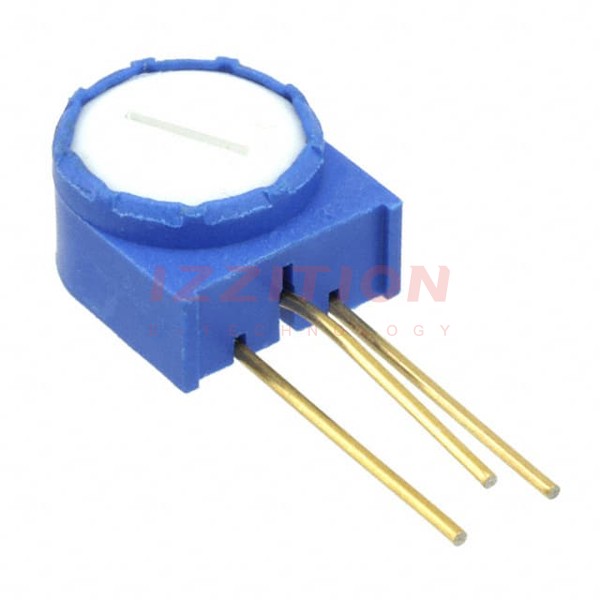

| Part Number | 3345W-1-500 | 3345W-1-503 | 3345W-1-501 | 3345W-1-502 | 3345P-1-500 | 3345W-1-100 | 3345W-1-200 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 50 Ohms | 50 kOhms | 500 Ohms | 5 kOhms | 50 Ohms | 10 Ohms | 20 Ohms |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.525" x 0.450" Face (13.34mm x 11.43mm) | Rectangular - 0.525" x 0.450" Face (13.34mm x 11.43mm) | Rectangular - 0.525" x 0.450" Face (13.34mm x 11.43mm) | Rectangular - 0.525" x 0.450" Face (13.34mm x 11.43mm) | Round - 0.450" Dia (11.43mm) | Rectangular - 0.525" x 0.450" Face (13.34mm x 11.43mm) | Rectangular - 0.525" x 0.450" Face (13.34mm x 11.43mm) |
