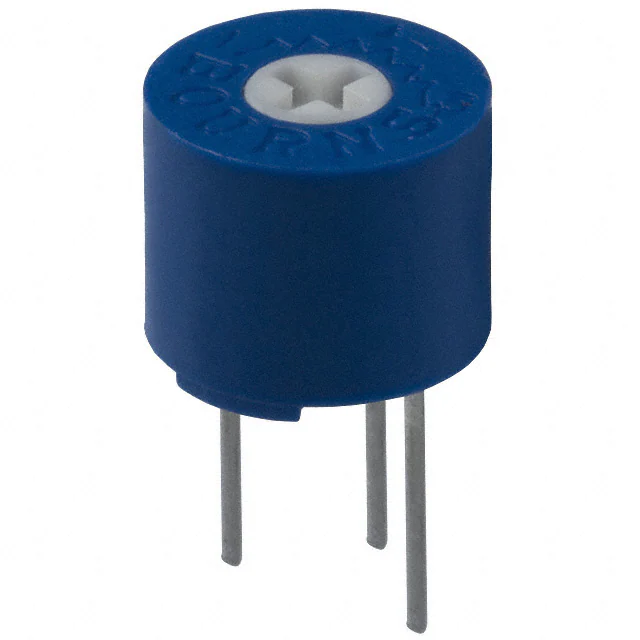

| Part Number | 3339P-1-202 | 3339P-1-222 | 3339P-1-252 | 3339P-1-204 | 3339P-1-203 | 3339W-1-202 | 3339S-1-202 | 3339P-1-502 | 3339H-1-202 | 3339P-1-102 | 3339P-1-200 | 3339P-1-201 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active | Active | Active | Active |
| Resistance | 2 kOhms | 2.2 kOhms | 2.5 kOhms | 200 kOhms | 20 kOhms | 2 kOhms | 2 kOhms | 5 kOhms | 2 kOhms | 1 kOhms | 20 Ohms | 200 Ohms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Round - 0.300" Dia (7.62mm) | Round - 0.300" Dia (7.62mm) | Round - 0.300" Dia (7.62mm) | Round - 0.300" Dia (7.62mm) | Round - 0.300" Dia (7.62mm) | Rectangular - 0.375" x 0.320" Face (9.53mm x 8.13mm) | Rectangular - 0.375" x 0.320" Face (9.53mm x 8.13mm) | Round - 0.300" Dia (7.62mm) | Round - 0.300" Dia (7.62mm) | Round - 0.300" Dia (7.62mm) | Round - 0.300" Dia (7.62mm) | Round - 0.300" Dia (7.62mm) |
