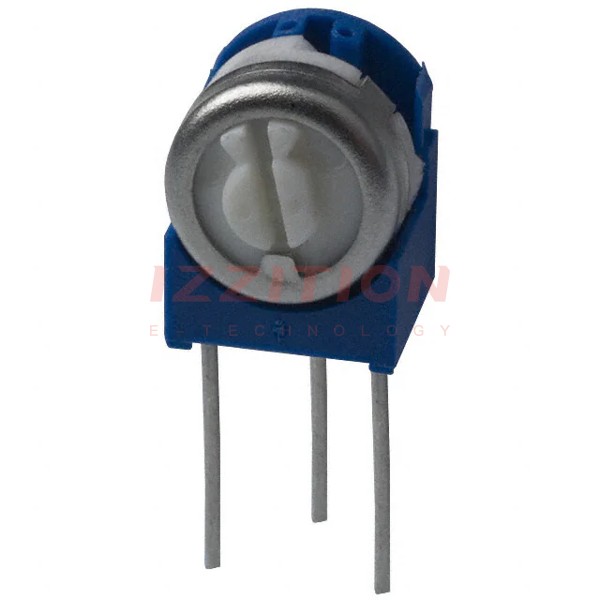

| Part Number | 3329S-1-200 | 3329S-1-500 | 3329S-1-201 | 3329S-1-202 | 3329S-1-203 | 3329S-1-204 | 3329W-1-200 | 3329P-1-200 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 20 Ohms | 50 Ohms | 200 Ohms | 2 kOhms | 20 kOhms | 200 kOhms | 20 Ohms | 20 Ohms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.260" x 0.330" Face (6.60mm x 8.38mm) | Rectangular - 0.260" x 0.330" Face (6.60mm x 8.38mm) | Rectangular - 0.260" x 0.330" Face (6.60mm x 8.38mm) | Rectangular - 0.260" x 0.330" Face (6.60mm x 8.38mm) | Rectangular - 0.260" x 0.330" Face (6.60mm x 8.38mm) | Rectangular - 0.260" x 0.330" Face (6.60mm x 8.38mm) | Rectangular - 0.260" x 0.330" Face (6.60mm x 8.38mm) | Round - 0.250" Dia (6.35mm) |
