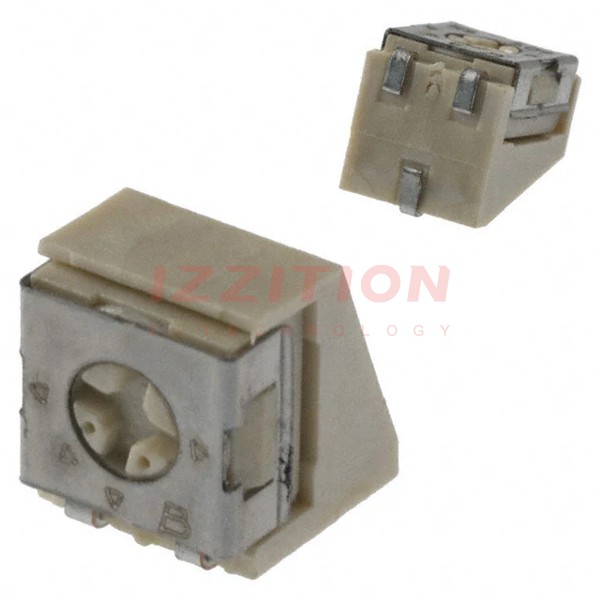

| Part Number | 3314Z-GA4-204E | 3314Z-GA4-205E | 3314Z-GA4-254E | 3314Z-GA4-504E | 3314Z-GA4-104E | 3314Z-GA4-200E | 3314Z-GA4-201E | 3314Z-GA4-202E | 3314Z-GA4-203E |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 200 kOhms | 2 MOhms | 250 kOhms | 500 kOhms | 100 kOhms | 20 Ohms | 200 Ohms | 2 kOhms | 20 kOhms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) |
