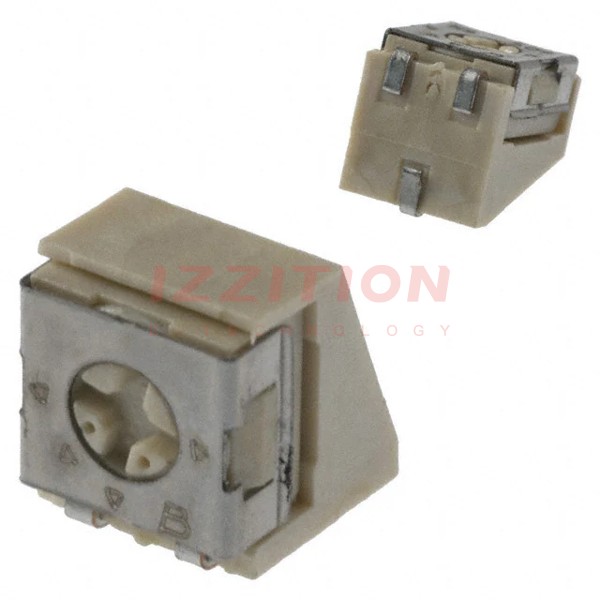

| Part Number | 3314Z-1-205E | 3314S-1-205E | 3314Z-1-105E | 3314Z-1-200E | 3314Z-1-201E | 3314Z-1-202E | 3314Z-1-203E | 3314Z-1-204E |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 2 MOhms | 2 MOhms | 1 MOhms | 20 Ohms | 200 Ohms | 2 kOhms | 20 kOhms | 200 kOhms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) |
