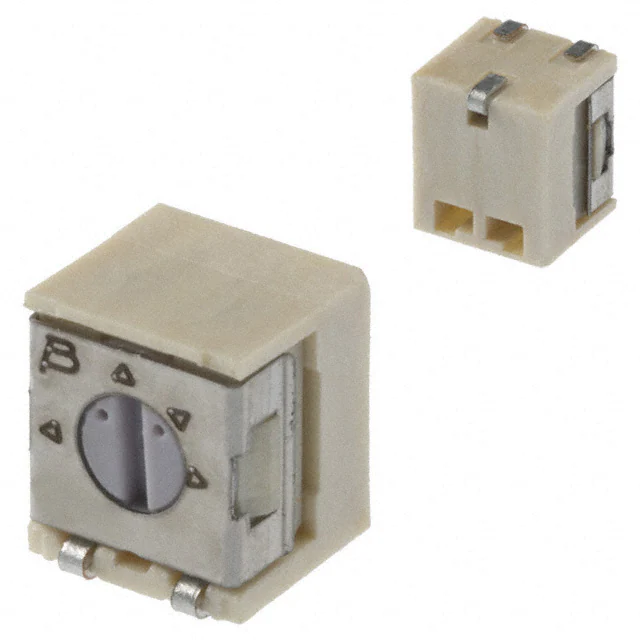

| Part Number | 3314S-1-500E | 3314S-1-502E | 3314S-1-503E | 3314S-1-501E | 3314S-1-504E | 3314Z-1-500E | 3314S-2-500E | 3314S-3-500E | 3314J-1-500E | 3314R-1-500E | 3314S-1-100E | 3314S-1-200E |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 50 Ohms | 5 kOhms | 50 kOhms | 500 Ohms | 500 kOhms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 10 Ohms | 20 Ohms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Bottom Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | Gull Wing | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) |
