Please send RFQ , we will respond immediately.

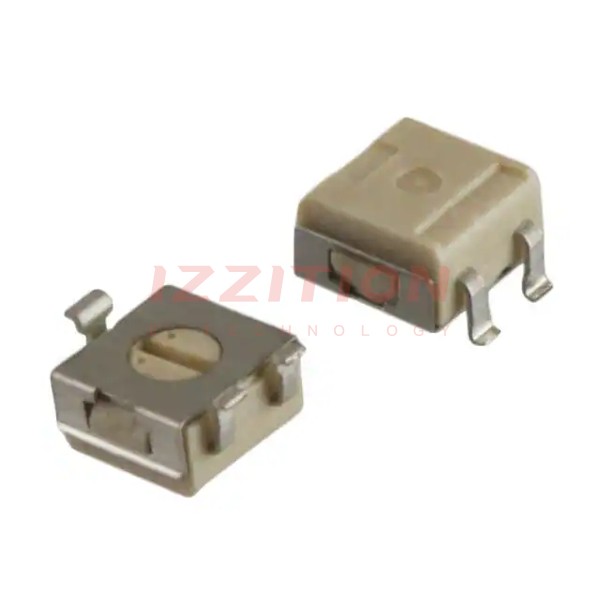

| Part Number | 3314R-1-105E | 3314S-1-105E | 3314R-1-205E | 3314J-1-105E | 3314R-1-100E | 3314R-1-101E | 3314R-1-102E | 3314R-1-103E | 3314R-1-104E |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 MOhms | 1 MOhms | 2 MOhms | 1 MOhms | 10 Ohms | 100 Ohms | 1 kOhms | 10 kOhms | 100 kOhms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Bottom Adjustment | Side Adjustment | Bottom Adjustment | Top Adjustment | Bottom Adjustment | Bottom Adjustment | Bottom Adjustment | Bottom Adjustment | Bottom Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | Gull Wing | J Lead | Gull Wing | J Lead | Gull Wing | Gull Wing | Gull Wing | Gull Wing | Gull Wing |
| Size / Dimension | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) |
