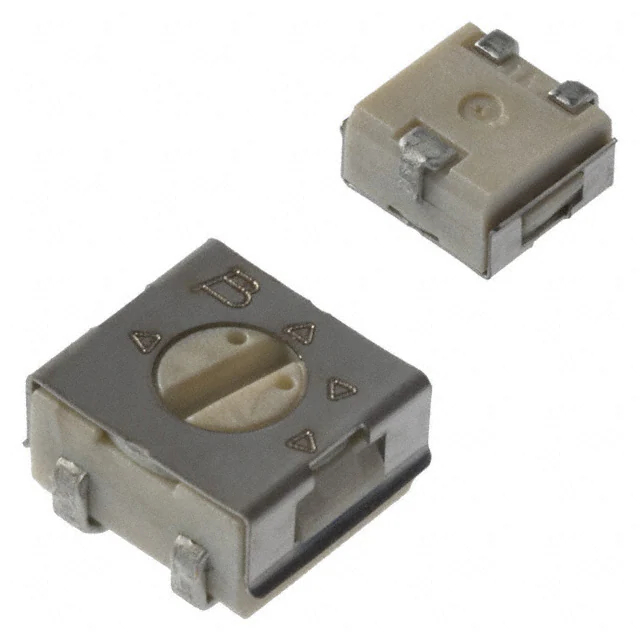

| Part Number | 3314J-1-472E | 3314J-1-473E | 3314R-1-472E | 3314J-1-471E |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance | 4.7 kOhms | 47 kOhms | 4.7 kOhms | 470 Ohms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Bottom Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | Gull Wing | J Lead |
| Size / Dimension | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) |
