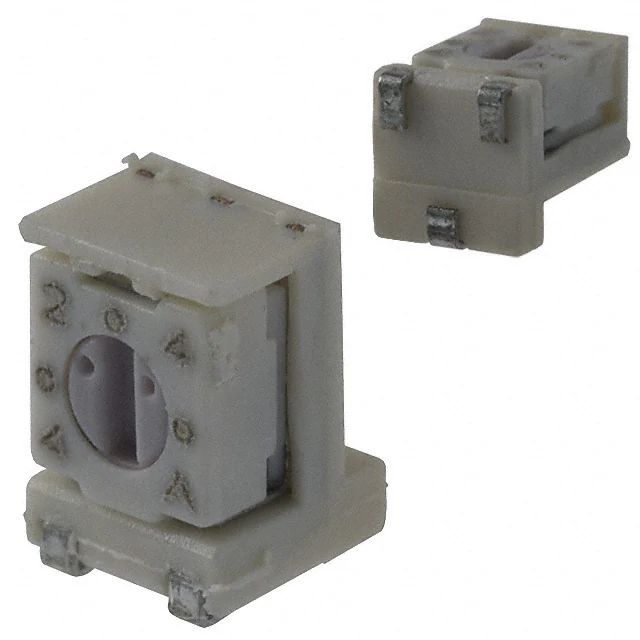

| Part Number | 3313S-1-105E | 3313S-1-205E | 3313J-1-105E | 3313S-1-100E | 3313S-1-101E | 3313S-1-102E | 3313S-1-103E | 3313S-1-104E |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 MOhms | 2 MOhms | 1 MOhms | 10 Ohms | 100 Ohms | 1 kOhms | 10 kOhms | 100 kOhms |
| Power (Watts) | 0.125W, 1/8W | 0.125W, 1/8W | 0.125W, 1/8W | 0.125W, 1/8W | 0.125W, 1/8W | 0.125W, 1/8W | 0.125W, 1/8W | 0.125W, 1/8W |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±150ppm/°C | ±150ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.142" x 0.159" Face (3.61mm x 4.05mm) | Rectangular - 0.142" x 0.159" Face (3.61mm x 4.05mm) | Rectangular - 0.138" x 0.126" Face (3.50mm x 3.20mm) | Rectangular - 0.142" x 0.159" Face (3.61mm x 4.05mm) | Rectangular - 0.142" x 0.159" Face (3.61mm x 4.05mm) | Rectangular - 0.142" x 0.159" Face (3.61mm x 4.05mm) | Rectangular - 0.142" x 0.159" Face (3.61mm x 4.05mm) | Rectangular - 0.142" x 0.159" Face (3.61mm x 4.05mm) |
