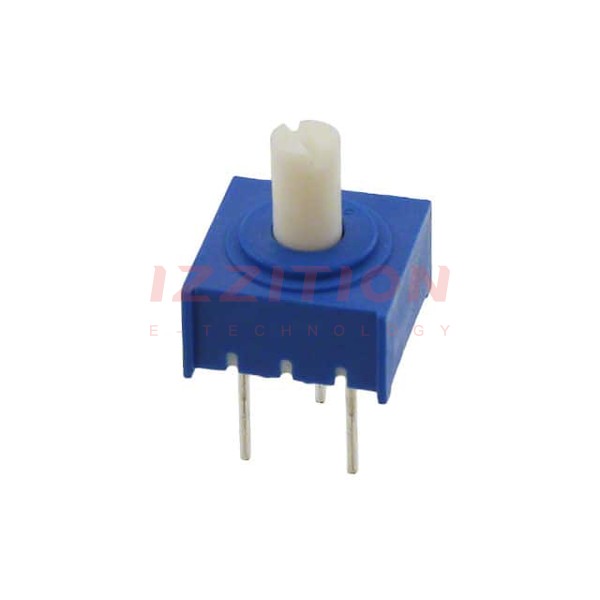

| Part Number | 3310Y-025-103L | 3310Y-125-103L | 3310C-025-103L | 3310H-025-103L | 3310P-025-103L | 3310R-025-103L |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Resistance (Ohms) | 10k | 10k | 10k | 10k | 10k | 10k |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Built in Switch | None | None | None | None | None | None |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | Sealed | Sealed | Sealed | Sealed | Sealed | Sealed |
| Taper | Linear | Linear | Linear | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 | 2 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Temperature Coefficient | ±1000ppm/°C | ±1000ppm/°C | ±1000ppm/°C | ±1000ppm/°C | ±1000ppm/°C | ±1000ppm/°C |
| Rotation | 300° | 300° | 300° | 300° | 300° | 300° |
| Resistive Material | Conductive Plastic | Conductive Plastic | Conductive Plastic | Conductive Plastic | Conductive Plastic | Conductive Plastic |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Actuator Type | Slotted | Flatted | Slotted | Slotted | Slotted | Slotted |
| Actuator Length | 0.220" (5.59mm) | 0.220" (5.59mm) | 0.220" (5.59mm) | 0.220" (5.59mm) | 0.220" (5.59mm) | 0.220" (5.59mm) |
| Actuator Diameter | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Bushing Thread | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
