Please send RFQ , we will respond immediately.

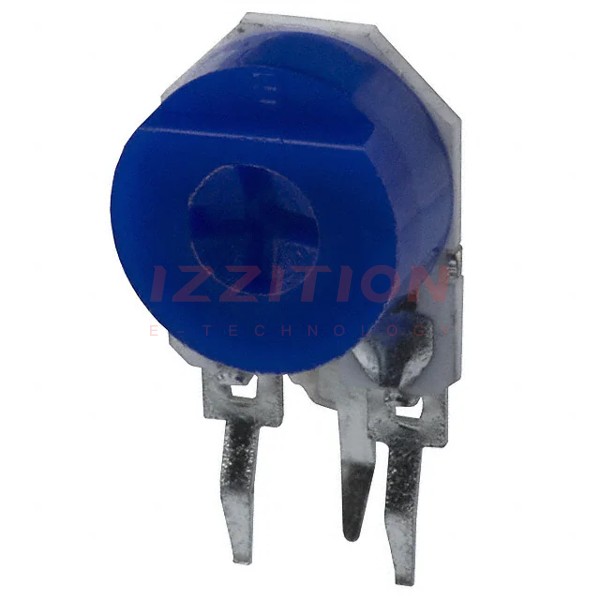

| Part Number | 3309W-1-104 | 3309W-1-504 | 3306W-1-104 | 3309P-1-104 | 3309W-1-102 | 3309W-1-103 |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Resistance | 100 kOhms | 500 kOhms | 100 kOhms | 100 kOhms | 1 kOhms | 10 kOhms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.2W, 1/5W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.354" x 0.433" Face (9.00mm x 11.00mm) | Rectangular - 0.354" x 0.433" Face (9.00mm x 11.00mm) | Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm) | Rectangular - 0.453" x 0.354" Face (11.50mm x 9.00mm) | Rectangular - 0.354" x 0.433" Face (9.00mm x 11.00mm) | Rectangular - 0.354" x 0.433" Face (9.00mm x 11.00mm) |
