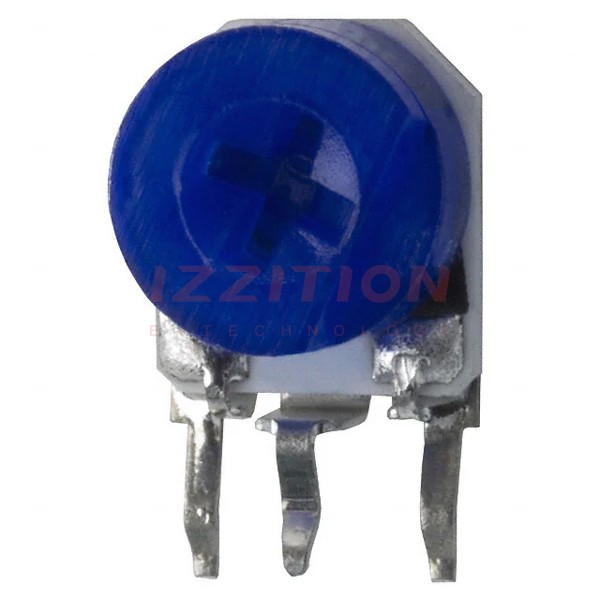

| Part Number | 3306W-1-105 | 3306F-1-105 | 3306K-1-105 | 3306P-1-105 | 3306W-1-101 | 3306W-1-102 | 3306W-1-103 | 3306W-1-104 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 MOhms | 1 MOhms | 1 MOhms | 1 MOhms | 100 Ohms | 1 kOhms | 10 kOhms | 100 kOhms |
| Power (Watts) | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W |
| Tolerance | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm) | Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm) | Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm) | Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm) | Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm) | Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm) | Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm) | Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm) |
