Please send RFQ , we will respond immediately.

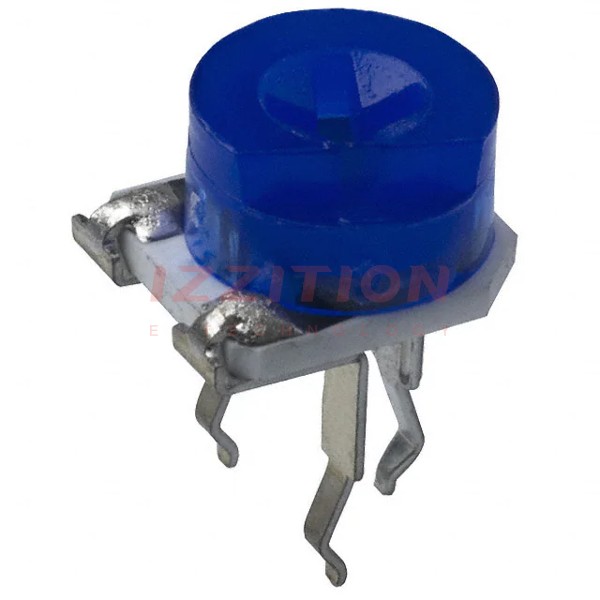

| Part Number | 3306P-1-202 | 3306W-1-202 | 3306P-1-502 | 3306P-1-203 | 3306P-1-204 | 3309P-1-202 | 3306F-1-202 | 3306K-1-202 | 3306P-1-102 | 3306P-1-201 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active |
| Resistance | 2 kOhms | 2 kOhms | 5 kOhms | 20 kOhms | 200 kOhms | 2 kOhms | 2 kOhms | 2 kOhms | 1 kOhms | 200 Ohms |
| Power (Watts) | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.5W, 1/2W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W |
| Tolerance | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Side Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm) | Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm) | Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm) | Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm) | Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm) | Rectangular - 0.453" x 0.354" Face (11.50mm x 9.00mm) | Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm) | Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm) | Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm) | Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm) |
