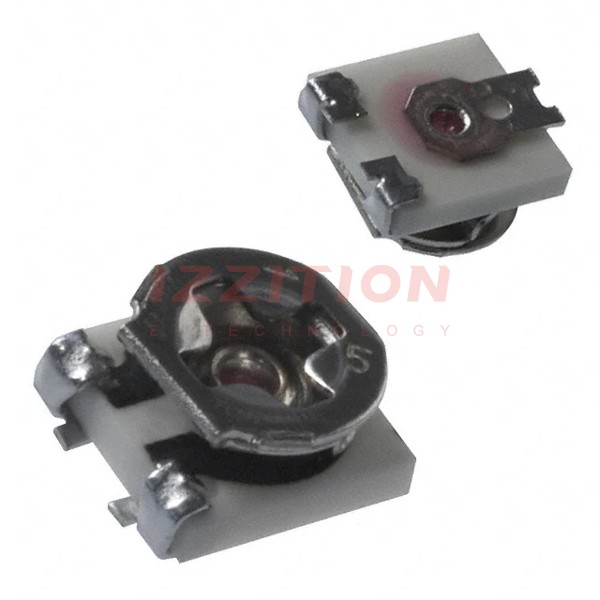

| Part Number | 3303X-3-105E | 3302X-3-105E | 3303W-3-105E | 3303X-3-101E | 3303X-3-102E | 3303X-3-103E | 3303X-3-104E |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 1 MOhms | 1 MOhms | 1 MOhms | 100 Ohms | 1 kOhms | 10 kOhms | 100 kOhms |
| Power (Watts) | 0.15W | 0.15W | 0.15W | 0.15W | 0.15W | 0.15W | 0.15W |
| Tolerance | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.148" x 0.118" Face (3.75mm x 3.00mm) | Rectangular - 0.108" x 0.087" Face (2.75mm x 2.20mm) | Rectangular - 0.148" x 0.118" Face (3.75mm x 3.00mm) | Rectangular - 0.148" x 0.118" Face (3.75mm x 3.00mm) | Rectangular - 0.148" x 0.118" Face (3.75mm x 3.00mm) | Rectangular - 0.148" x 0.118" Face (3.75mm x 3.00mm) | Rectangular - 0.148" x 0.118" Face (3.75mm x 3.00mm) |
