Please send RFQ , we will respond immediately.

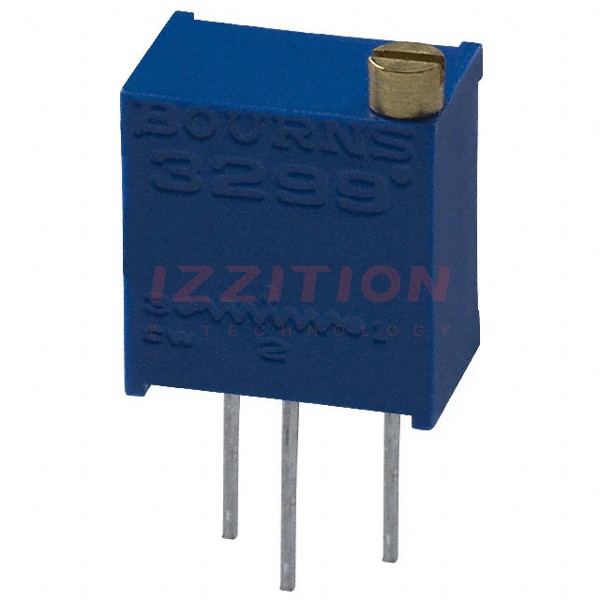

| Part Number | 3299Y-1-203LF | 3299Y-1-503LF | 3299Y-1-204LF | 3299Y-1-205LF | 3299Y-1-253LF | 3299Z-1-203LF | 3299W-1-203LF | 3299X-1-203LF | 3299Y-1-103LF | 3299Y-1-200LF | 3299Y-1-201LF | 3299Y-1-202LF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 20 kOhms | 50 kOhms | 200 kOhms | 2 MOhms | 25 kOhms | 20 kOhms | 20 kOhms | 20 kOhms | 10 kOhms | 20 Ohms | 200 Ohms | 2 kOhms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.395" x 0.240" Face (10.03mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.395" x 0.240" Face (10.03mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) |
