Please send RFQ , we will respond immediately.

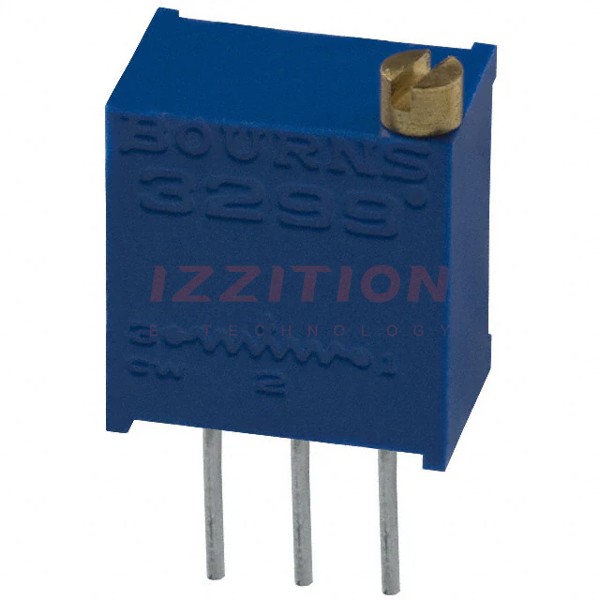

| Part Number | 3299W-1-102 | 3299W-1-502 | 3299W-1-202 | 3299W-1-103 | 3299W-1-104 | 3299Y-1-102 | 3299W-1-105 | 3299X-1-102 | 3299P-1-102 | 3299W-1-100 | 3299W-1-101 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 kOhms | 5 kOhms | 2 kOhms | 10 kOhms | 100 kOhms | 1 kOhms | 1 MOhms | 1 kOhms | 1 kOhms | 10 Ohms | 100 Ohms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.395" x 0.240" Face (10.03mm x 6.10mm) | Rectangular - 0.240" x 0.375" Face (6.10mm x 9.53mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) | Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm) |
