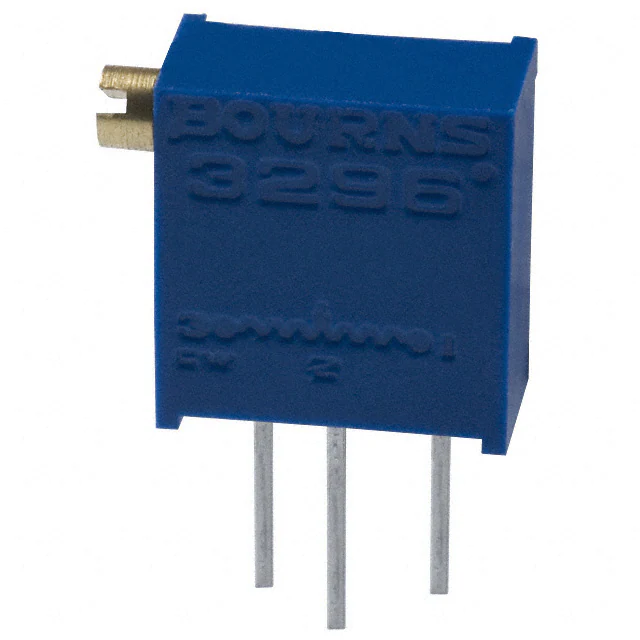

| Part Number | 3296Z-1-502 | 3296Z-1-505 | 3296Z-1-503 | 3296Z-1-504 | 3296Y-1-502 | 3296Z-1-102 | 3296Z-1-202 | 3296Z-1-500 | 3296Z-1-501 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 5 kOhms | 5 mOhms | 50 kOhms | 500 kOhms | 5 kOhms | 1 kOhms | 2 kOhms | 50 Ohms | 500 Ohms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) |
