Please send RFQ , we will respond immediately.

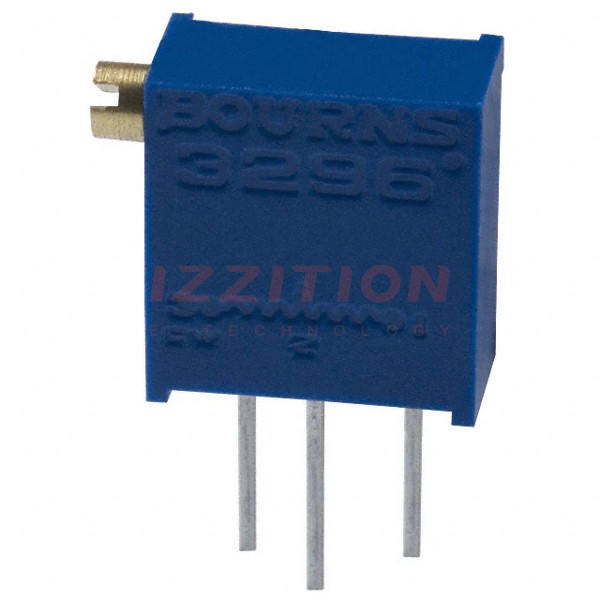

| Part Number | 3296Z-1-253LF | 3296Z-1-254LF | 3296Y-1-253LF | 3296Z-1-203LF |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance | 25 kOhms | 250 kOhms | 25 kOhms | 20 kOhms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 25 | 25 | 25 | 25 |
| Adjustment Type | Side Adjustment | Side Adjustment | Top Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) |
