3292P-1-255LF
  • Share:

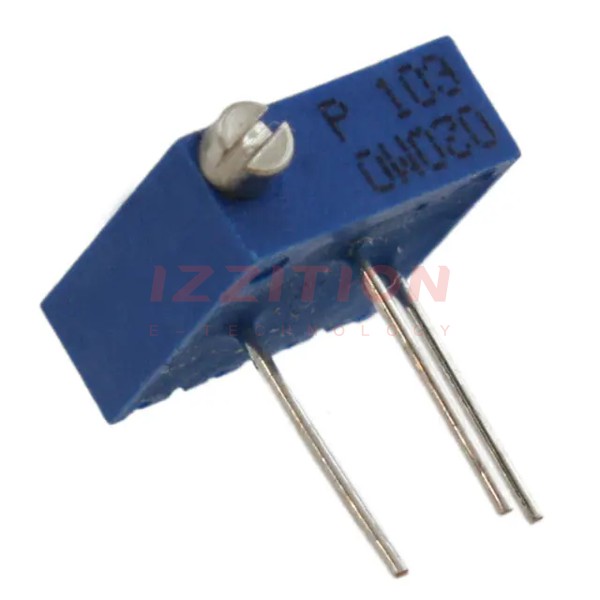

Bourns Inc. 3292P-1-255LF

Manufacturer No:
3292P-1-255LF
Manufacturer:
Bourns Inc.
Package:
Tube
Datasheet:
3292P-1-255LF Datasheet
ECAD Model:
-
Description:
TRIMMER 2.5MOHM 0.5W PC PIN SIDE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:2.5 mOhms
Power (Watts):0.5W, 1/2W
Tolerance:±10%
Temperature Coefficient:±100ppm/°C
Number of Turns:25
Adjustment Type:Side Adjustment
Resistive Material:Cermet
Mounting Type:Through Hole
Termination Style:PC Pins
Size / Dimension:Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm)
0 Remaining View Similar

In Stock

$7.46
11

Please send RFQ , we will respond immediately.

Similar Products

Part Number 3292P-1-255LF 3292P-1-253LF
Manufacturer Bourns Inc. Bourns Inc.
Product Status Active Active
Resistance 2.5 mOhms 25 kOhms
Power (Watts) 0.5W, 1/2W 0.5W, 1/2W
Tolerance ±10% ±10%
Temperature Coefficient ±100ppm/°C ±100ppm/°C
Number of Turns 25 25
Adjustment Type Side Adjustment Side Adjustment
Resistive Material Cermet Cermet
Mounting Type Through Hole Through Hole
Termination Style PC Pins PC Pins
Size / Dimension Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm)
