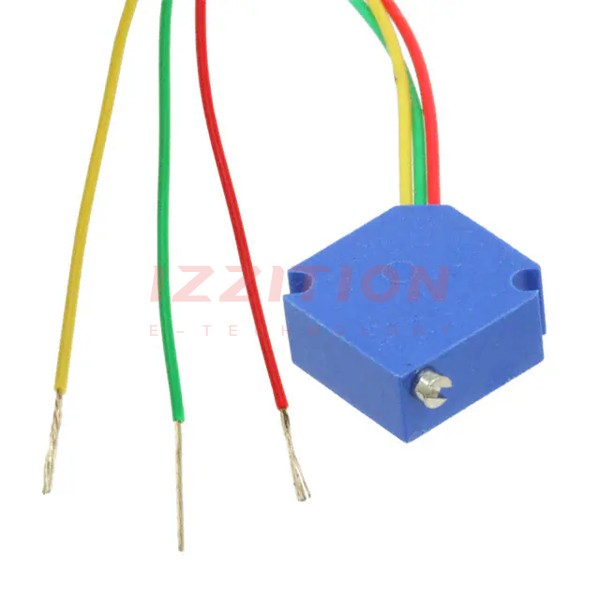

| Part Number | 3292L-1-502LF | 3292P-1-502LF | 3292L-1-503LF | 3292L-1-504LF | 3292L-1-102LF | 3292L-1-202LF | 3292L-1-500LF | 3292L-1-501LF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 5 kOhms | 5 kOhms | 50 kOhms | 500 kOhms | 1 kOhms | 2 kOhms | 50 Ohms | 500 Ohms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Adjustment Type | Top Adjustment | Side Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Chassis Mount | Through Hole | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | Wire Leads | PC Pins | Wire Leads | Wire Leads | Wire Leads | Wire Leads | Wire Leads | Wire Leads |
| Size / Dimension | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
