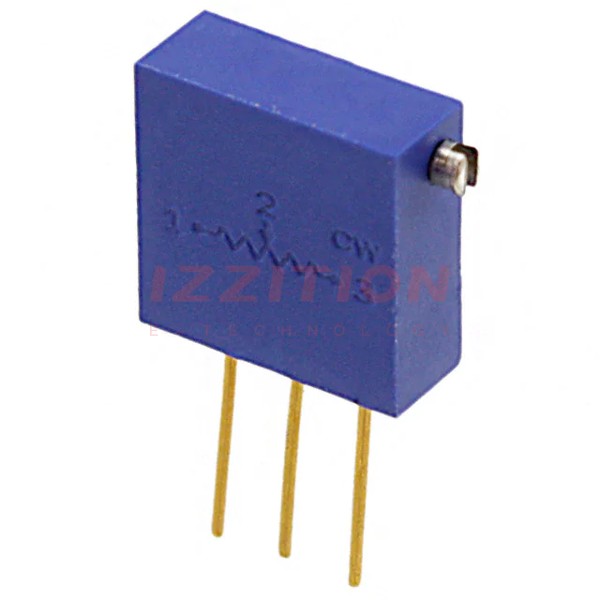

| Part Number | 3290H-1-503 | 3290W-1-503 | 3290P-1-503 | 3290H-1-103 | 3290H-1-203 | 3290H-1-500 | 3290H-1-501 | 3290H-1-502 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 50 kOhms | 50 kOhms | 50 kOhms | 10 kOhms | 20 kOhms | 50 Ohms | 500 Ohms | 5 kOhms |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Number of Turns | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Adjustment Type | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
