Please send RFQ , we will respond immediately.

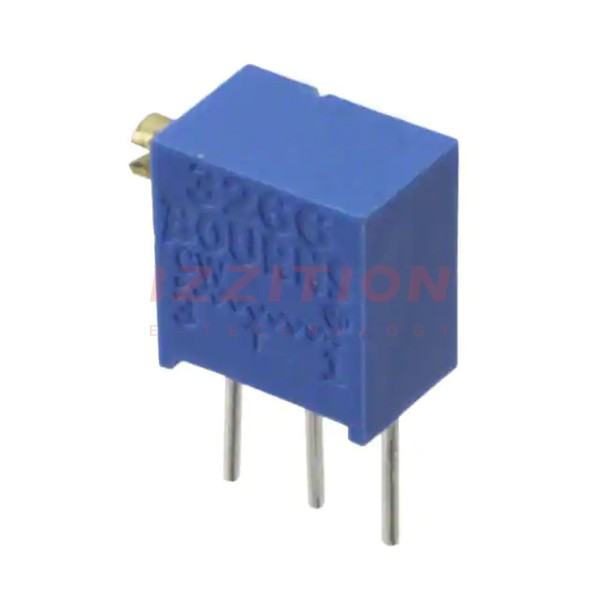

| Part Number | 3266Z-1-102 | 3266Z-1-103 | 3266Z-1-104 | 3266Z-1-105 | 3266Z-1-202 | 3266Z-1-502 | 3266Y-1-102 | 3266Z-1-100 | 3266Z-1-101 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 kOhms | 10 kOhms | 100 kOhms | 1 MOhms | 2 kOhms | 5 kOhms | 1 kOhms | 10 Ohms | 100 Ohms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
