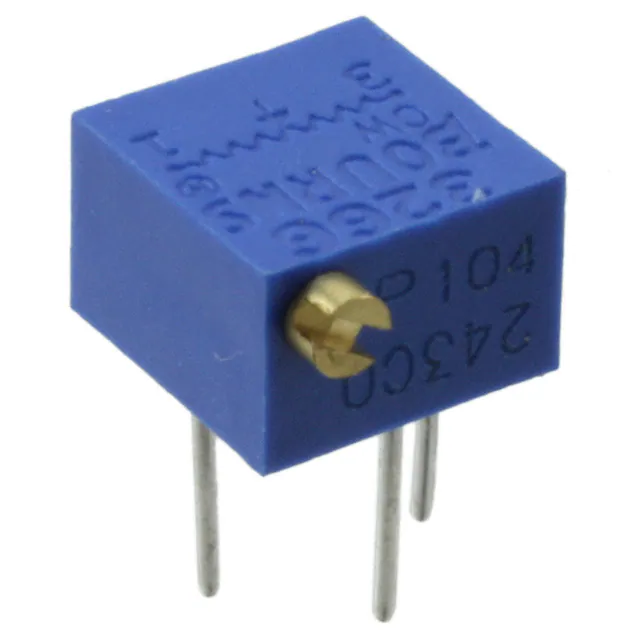

| Part Number | 3266P-1-201LF | 3266W-1-201LF | 3266X-1-201LF | 3266P-1-202LF | 3266P-1-203LF | 3266P-1-501LF | 3266P-1-204LF | 3266P-1-101LF | 3266P-1-200LF |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 200 Ohms | 200 Ohms | 200 Ohms | 2 kOhms | 20 kOhms | 500 Ohms | 200 kOhms | 100 Ohms | 20 Ohms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Adjustment Type | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.250" x 0.174" Face (6.35mm x 4.42mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.174" Face (6.35mm x 4.42mm) | Rectangular - 0.250" x 0.174" Face (6.35mm x 4.42mm) | Rectangular - 0.250" x 0.174" Face (6.35mm x 4.42mm) | Rectangular - 0.250" x 0.174" Face (6.35mm x 4.42mm) | Rectangular - 0.250" x 0.174" Face (6.35mm x 4.42mm) | Rectangular - 0.250" x 0.174" Face (6.35mm x 4.42mm) |
