Please send RFQ , we will respond immediately.

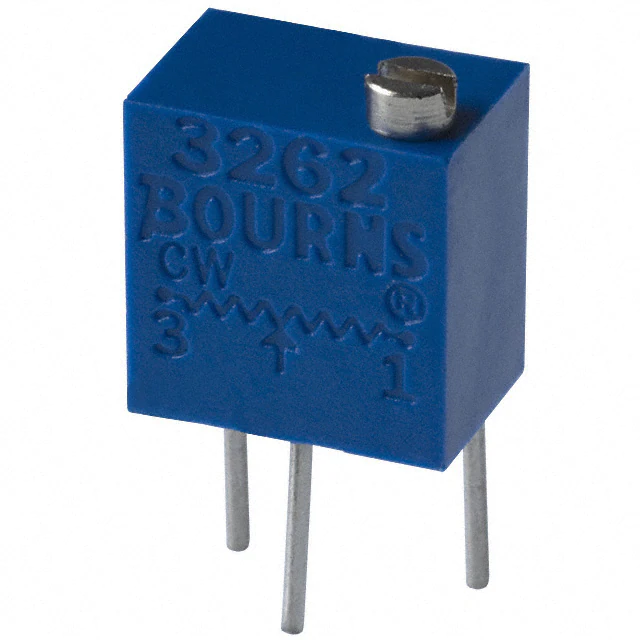

| Part Number | 3262W-1-204 | 3262W-1-205 | 3262W-1-254 | 3262W-1-504 | 3262X-1-204 | 3262P-1-204 | 3262W-1-104 | 3262W-1-200 | 3262W-1-201 | 3262W-1-202 | 3262W-1-203 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 200 kOhms | 2 MOhms | 250 kOhms | 500 kOhms | 200 kOhms | 200 kOhms | 100 kOhms | 20 Ohms | 200 Ohms | 2 kOhms | 20 kOhms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.185" Face (6.35mm x 4.70mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
